ZONESUN Custom Automatic Soft Tube Paste Filling And Ultrasonic Sealing Machine

ZONESUN Custom Automatic Soft Tube Paste Filling And Ultrasonic Sealing Machine

Regular price $14,300.00 USD
Regular price Sale price $14,300.00 USD
Sale Sold out
Shipping calculated at checkout.
Voltage

DESCRIPTION

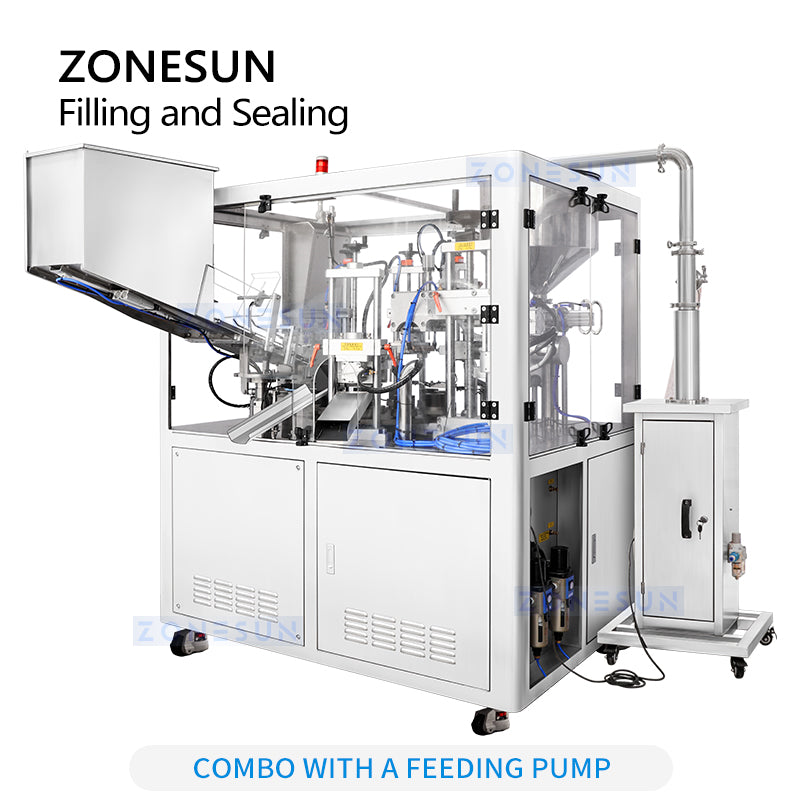

Introducing our new automatic tube filling and sealing machine! Equipped with a tube loading station and pick and place station, the machine efficiently transfers tubes to the tube orient station where color-coded identification ensures accurate positioning. The filling station features a piston pump and material hopper, while the sealing station uses ultrasonic technology to cut and code each tube with a unique production date. Then the pneumatic trim station is where the top of the tube is trimmed to create a clean and professional finish. Finally, the unload station releases finished tubes from the star wheel. Save time and increase productivity with our reliable and user-friendly machine.

Whatever your packaging needs are, you can rely on ZONESUN.


PARAMETER



Model

ZS-FS009U

Voltage

220V/110V, 50/60Hz

Power

2.6kW

Hopper Capacity

30L

Filling Range

6-60ml/10-120ml/25-250ml

Filling Accuracy

±1%

Capacity

18-28pcs/min

Tube Diameter

16-50mm

Tube Height

70-210mm

Cutting Method

Ultrasonic, 20kHz

Air Pressure

0.6Mpa

Application

Aluminum-plastic soft tube,

plastic soft tube

Machine Material

Stainless
Steel

Net Weight/Gross Weight

About 450kg/555kg

Machine Size

About 1615*1400*1590mm

Package Size

About 1610*1760*1860mm
