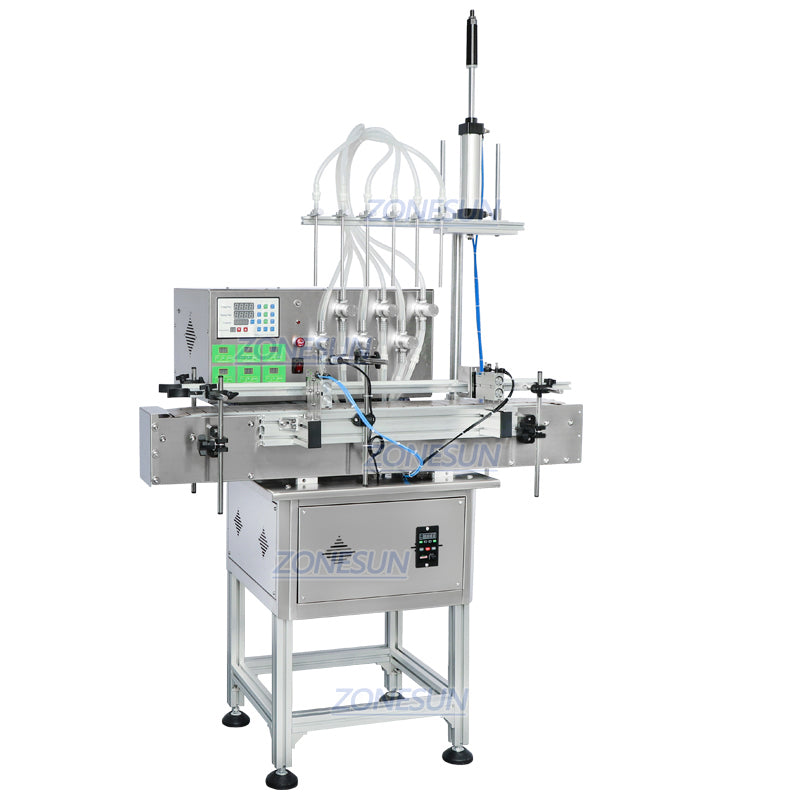

ZONESUN ZS-DTMP6M Automatic Magnetic Pump Liquid Filling Machine
ZONESUN ZS-DTMP6M Automatic Magnetic Pump Liquid Filling Machine
Couldn't load pickup availability
Parameter
|
Machine model |
ZS-DTMP6M |
|
Power supply |
110/220V 50-60HZ 300W |
|
Maximum flow velocity |
7500ml/min (Each nozzle and base on 250ml water) |
|
Working speed |
40-50 bottles/min (base on 250ml water) |
|
Air pressure |
0.3-0.4MPa |
|
Filling accuracy |
≤±1% (For water) |
|
Diameter of filling nozzle |
6/8mm |
|
Delay range |
0.01-999.9s |
|
Count range |
1-99999 Times |
|
Filling volume |
3-1000ml |
|
Size of air compressor connector |
OD8mm |
|
Package size |
About 860*720*1330mm |
|
Package weight |
About 118kg |
Application
This machine is suitable for filling low-viscosity liquid, such as essential oil, soy sauce, juice, vinegar, etc. It can work in production line, which can be used with automatic capping machine and labeling machine, realizing automated production. The machine can be widely used in medicine, cosmetic, drink industries.
