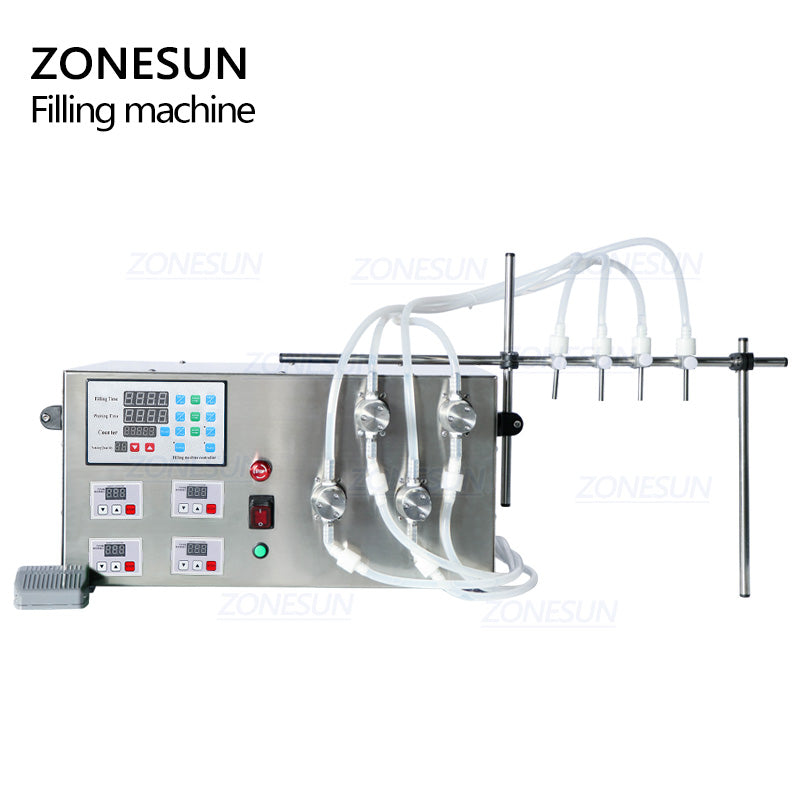

ZONESUN ZS-YTMP4S Semi-Automatic 4 Heads Magnetic Pump Liquid Filling Machine

ZONESUN ZS-YTMP4S Semi-Automatic 4 Heads Magnetic Pump Liquid Filling Machine

Regular price $1,014.99 USD
Regular price $1,080.00 USD Sale price $1,014.99 USD
Sale Sold out
Shipping calculated at checkout.
Voltage
Filling capacity

Feature

1.With magnetic pumps, it can fill liquid accurately.

2.The filling speed of four nozzles can be adjusted as needed. Easy to operate.

3.With emergency stop button, it can avert damage to the machine when emergency happens.Ensure working safety.

4.With inching button, you can test the machine before filling. Easy and convenient.

5.It has two working modes: Automatic working mode and pedal switch control mode.



Parameter

Machine Model

ZS-YTMP4S

Voltage/Power

AC 220V/110V 100W

Pump Material

316 Stainless Steel

Filling Range

Recommended≤1000ml/bottle (10s)

Max Flow Rate

6L/min*4

Max Suck Distance

2 meter

Anti-leaking Function

Available

Memory Function

Filling Nozzle(OD Size)

4mm and 6mm

Gross weight/Net weight

About 15.5kg/23kg

Machine Size

About 550*315*260mm

Package Size

About 615*435*315mm


Application

This machine is suitable for filling low-viscosity liquid, such as essential oil, ink, juice, milk, etc. It is in small size, which is suitable for indivisual workshop. The machine can be widely used in pharmaceutical, cosmetic, beverage industries.



Notice

We also have 1/2/6 heads filling machine of this kind, which you can choose according to your production need. Please contact us if you need. Thank you!
