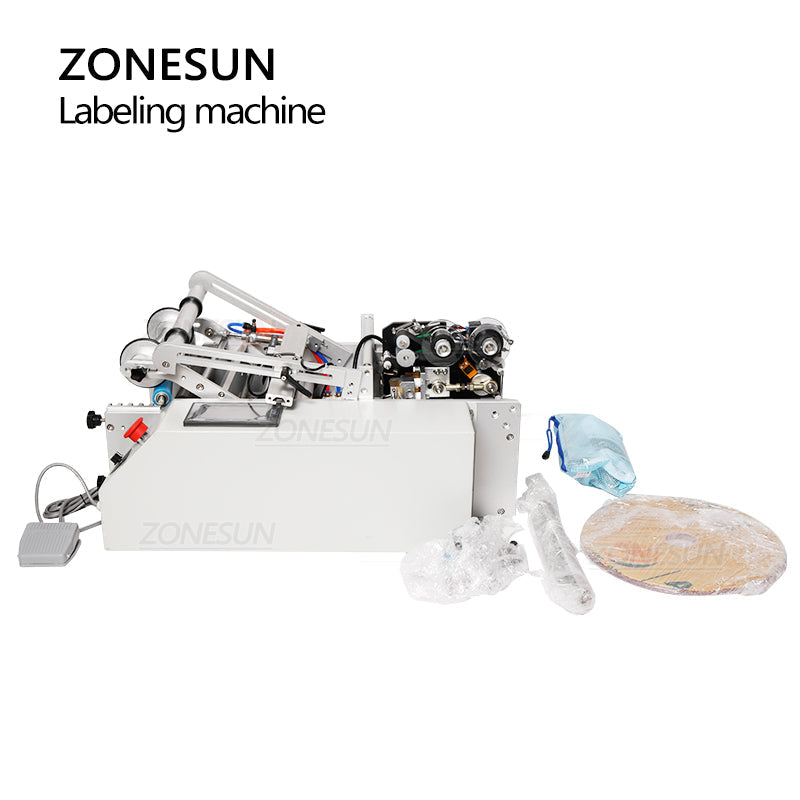

ZONESUN ZS-TB190 Semi-automatic Double Side Round Bottle Labeling Machine With Date Coder
ZONESUN ZS-TB190 Semi-automatic Double Side Round Bottle Labeling Machine With Date Coder
Normaler Preis
$1,199.00 USD
Normaler Preis
Verkaufspreis
$1,199.00 USD
Grundpreis
pro
Versand wird beim Checkout berechnet
Verfügbarkeit für Abholungen konnte nicht geladen werden
Parameter
|
Labeling Capacity(pcs/min)
|
15- 35PCS/min
|
|||
|
Labeling Accuracy(mm)
|
士1.0mm
|
|||
|
Label Size(mm)
|
(L)20-300mm (H)20-235mm
|
|||
|
Suitable Bottle Diameter
|
φ10-φ150mm
|
|||
|
Suitable Bottle Height
|
≤26cm
|
|||
|
Roll Inside Diameter(mm)
|
φ76mm
|
|||
|
Roll Outside Diameter(mm)
|
φ250mm
|
|||
|
Machine Size (mm)
|
(L)950*(W)540*(H)530(mm)
|
|||
|
Weight
|
35kg
|
|||
|
Power Supply
|
AC220V 50Hz/60Hz 250W
|
|||
Advantage
1.Two working modes:Pedal switch control or automatic working mode
2.Labeling function:Single side labeling and double side labeling（The space between two labels can be adjusted.）
3.Labeling speed is adjustable,improve the working efficiency greatly
4.It can be equipped with date printer,making labeling and printing at one machine.
5.Intelligent operation panel:Easy to adjust the working data,improve the product quality.
Application
It is suitable for labeling cylindrical objects of various specifications and small taper round bottles, such as cosmetics round bottles, wine bottles, etc. markers can be adjusted arbitrarily. Widely used in food, cosmetics, chemical industry, brewing, medicine and other industries.
Notice:
1. The front and back label on the same roll.
2.If you need the labeling machine for Flat Or irregular thing. please contact us for customization
