ZONESUN ZS-DTMP4AL Automatic Magnetic Pump Liquid Filling Machine（Best Offer）
ZONESUN ZS-DTMP4AL Automatic Magnetic Pump Liquid Filling Machine（Best Offer）
Verfügbarkeit für Abholungen konnte nicht geladen werden
Note
Special discount is only applicable to this link. Quantity is limited, and the original price will be restored after sold out. Please contact customer service for details
Parameter
|
Model |
ZS-DTMP4AL |
|
Power Supply |
110/220V 50-60HZ 300W |
|
Max Flow Rate |
6L/min (Based on water) |
|
Working Speed |
20-30 bottles/min |
|
Air Pressure |
0.3-0.4MPa |
|
Filling Accuracy |
99% (For water) |
|
Nozzle Diameter |
6/8mm |
|
Count Range |
1-99999 |
|
Filling Volume |
3-1000ml |
|
Air compressor connector |
OD 8mm |
|
Conveyor Load |
≤12kg |
|
Size |
About 1100*580*1110mm |
|
Package Size |
About 1150*640*850mm |
|
Net weight |
About 74kg |
|
Gross weight |
About 91kg |
Description

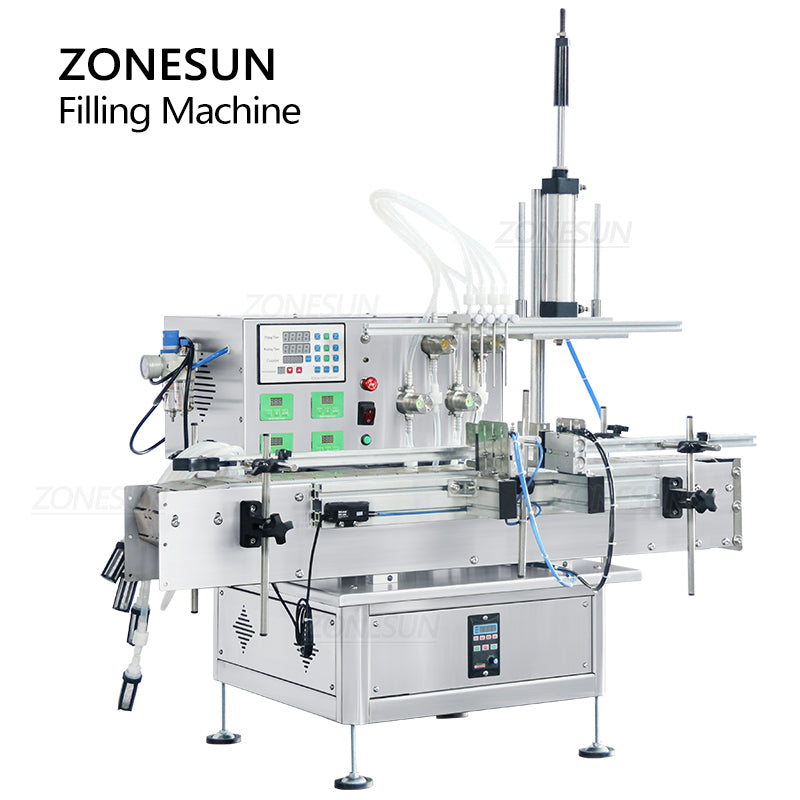

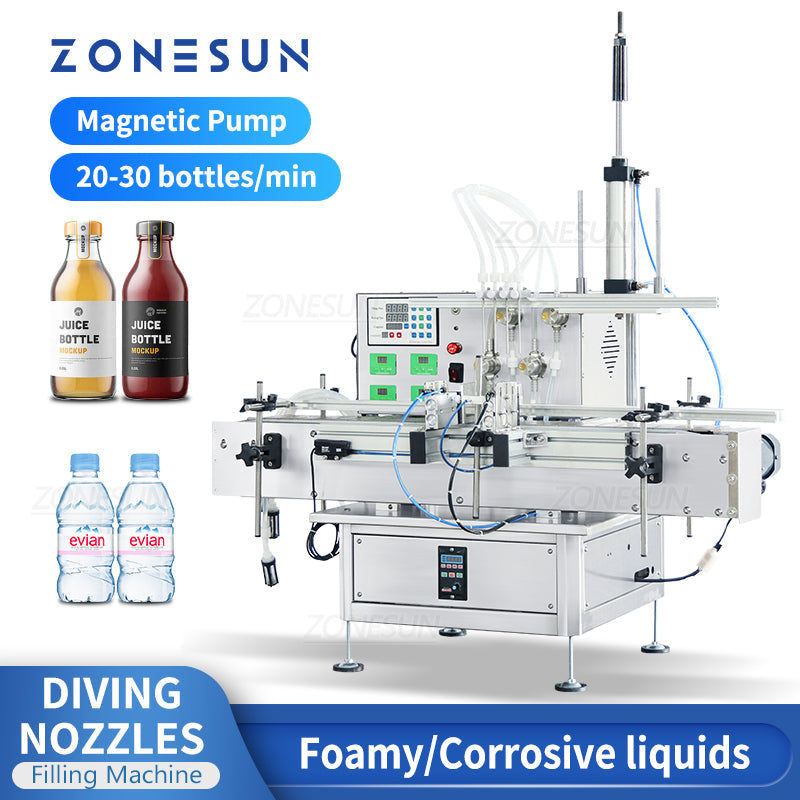

This tabletop automatic filling machine is suitable for foamy liquid, essential oil, perfume, beverage, etc. It is with chain conveyor, which has a high loading capacity. It can transport heavy products steadily and smoothly. With magnetic pumps, it can fill liquid accurately. The machine can work with tabletop labeling machine and capping machine, realizing automated production. Help to improve working efficiency.
PRODUCT DETAILS

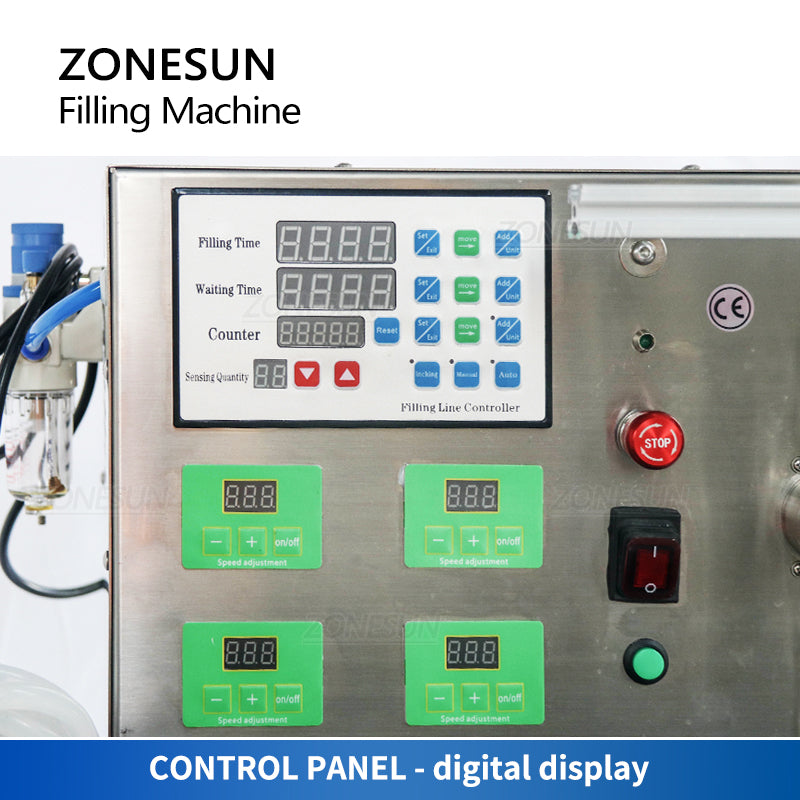

CONTROL PANEL
Digital display, easy to set the parameters and operate the machine, with a counting function.

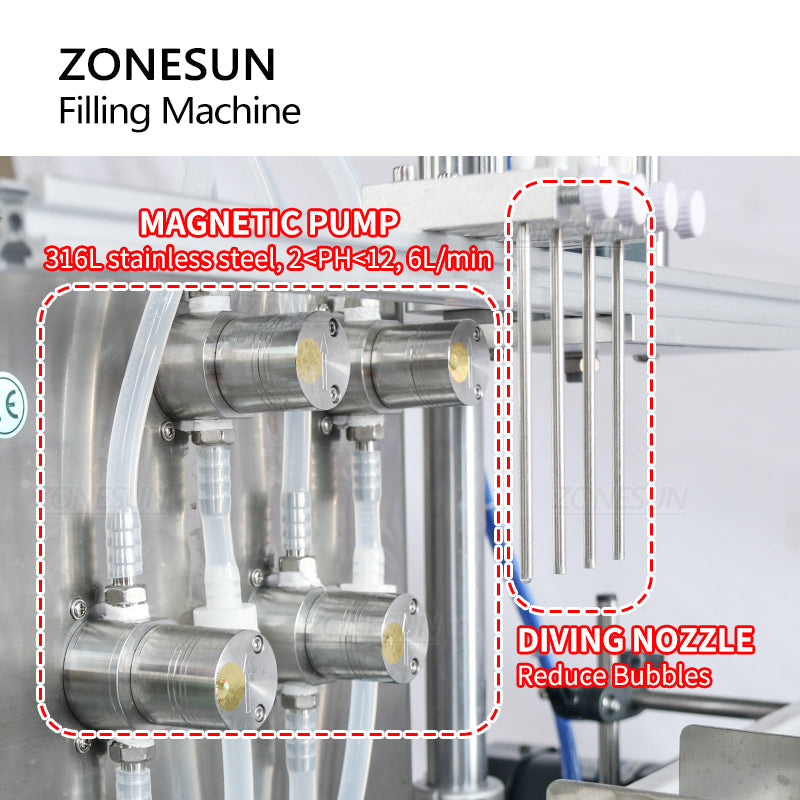

MAGNETIC PUMP
Made of 316L stainless steel, 2<PH<12, corrosive thin liquids, 6L/min.
DIVING NOZZLE
It helps reduce bubbles during filling liquids, which makes it suitable for foamy liquids.

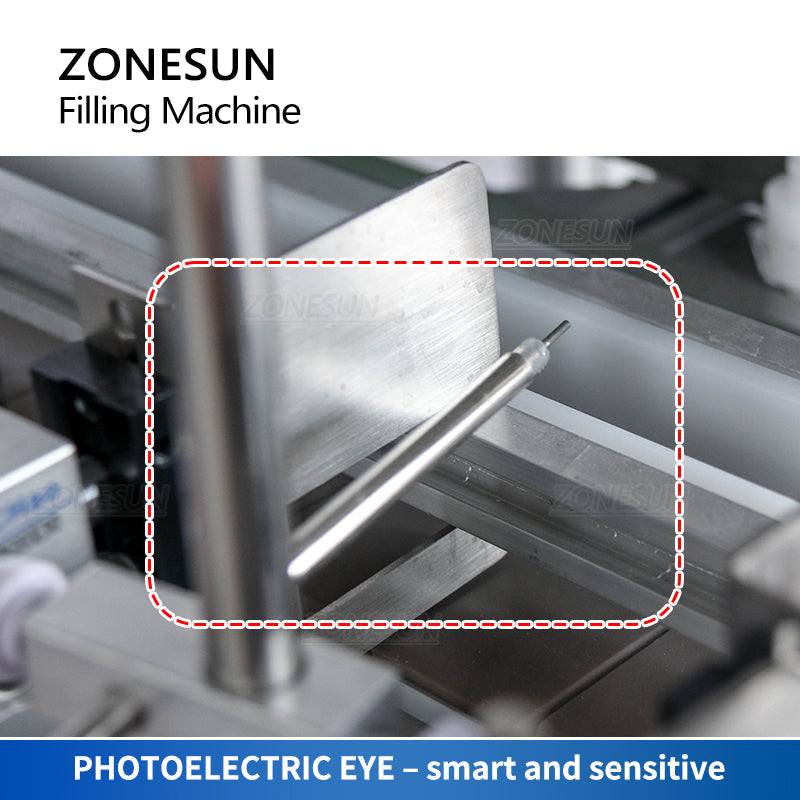

PHOTOELECTRIC EYE
It smartly detects the containers and helps to control the whole procedure.

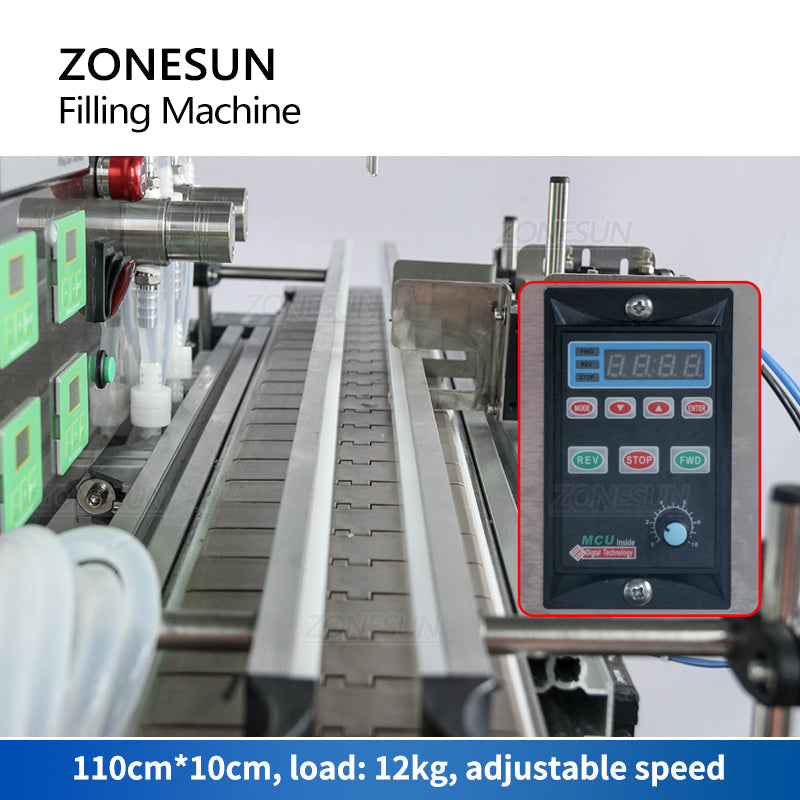

CONVEYOR
110cm*10cm, load: 12kg, adjustable speed.
