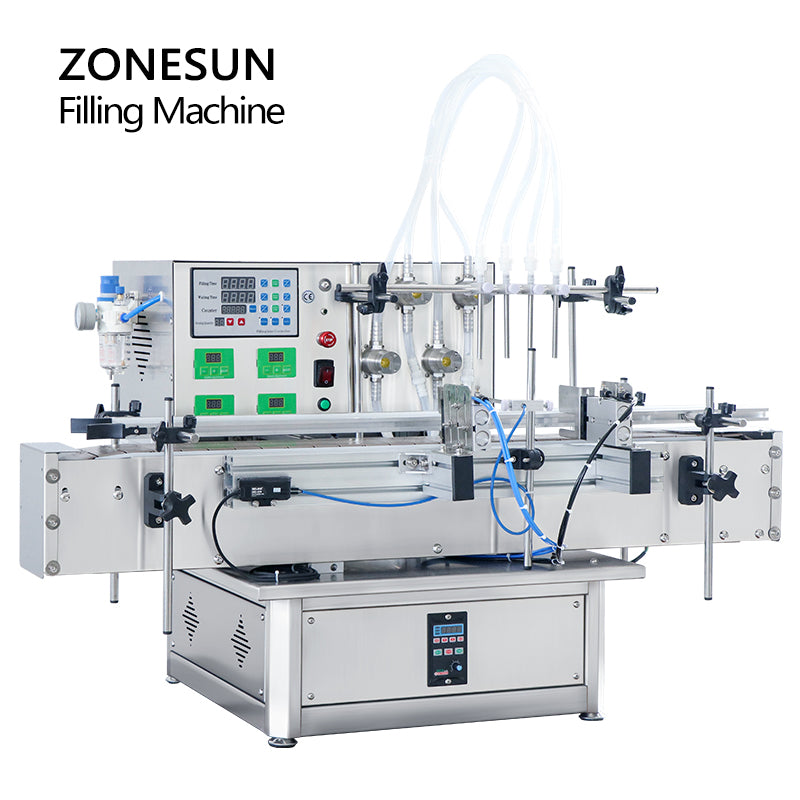

ZONESUN ZS-DTMP4Y Tabletop Automatic 4 Heads Magnetic Pump Liquid Filling Machine
ZONESUN ZS-DTMP4Y Tabletop Automatic 4 Heads Magnetic Pump Liquid Filling Machine
Verfügbarkeit für Abholungen konnte nicht geladen werden
Parameter
|
Machine model |
ZS-DTMP4Y |
|
Power supply |
110/220V 50-60HZ 300W |
|
Machine pump |
304 Stainless Steel Magnetic Pump |
|
Maximum flow rate |
6L/min (Each nozzle and based on water ) |
|
Working speed |
20-30 bottles/min(depend on liquid and bottles' size) |
|
Air pressure |
0.3-0.4mpa |
|
Filling accuracy |
≤±1%( for water) |
|
Dimension of filling nozzle |
Standard 8mm and 6mm |
|
Delay range |
0.01s-999.9s |
|
Count range |
1-99999 times |
|
Size of air compressor connector |
OD 6/8mm |
|
Package size |
About 1150*650*820mm |
|
Net weight/Gross weight |
About 59kg/89kg |
Application
This machine is suitable for filling low-viscosity liquid, such as oil, perfume, ink, milk, etc. With magnetic pumps, it can fill liquid accurately. The machine can work with tabletop capping machine and labeling machine, realizing automated production.
