ZONESUN MY-380F Solid Ink Roll Coding Machine

ZONESUN MY-380F Solid Ink Roll Coding Machine

Normál ár $279.00 USD
Normál ár Akciós ár $279.00 USD
Akciós Elfogyott
A szállítási költséget a megrendeléskor számítjuk ki.
Size
Voltage

Description

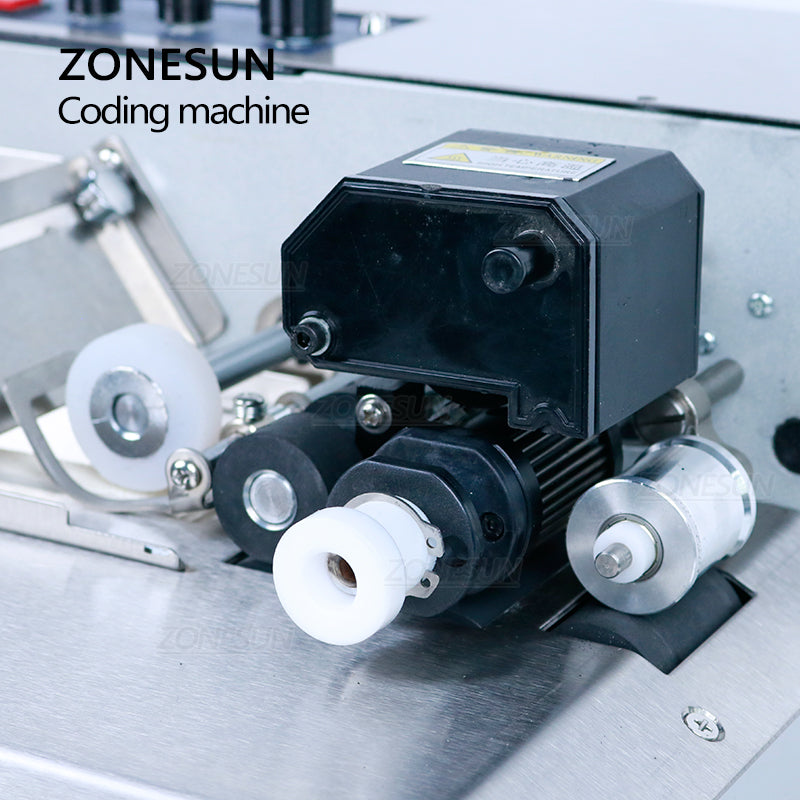

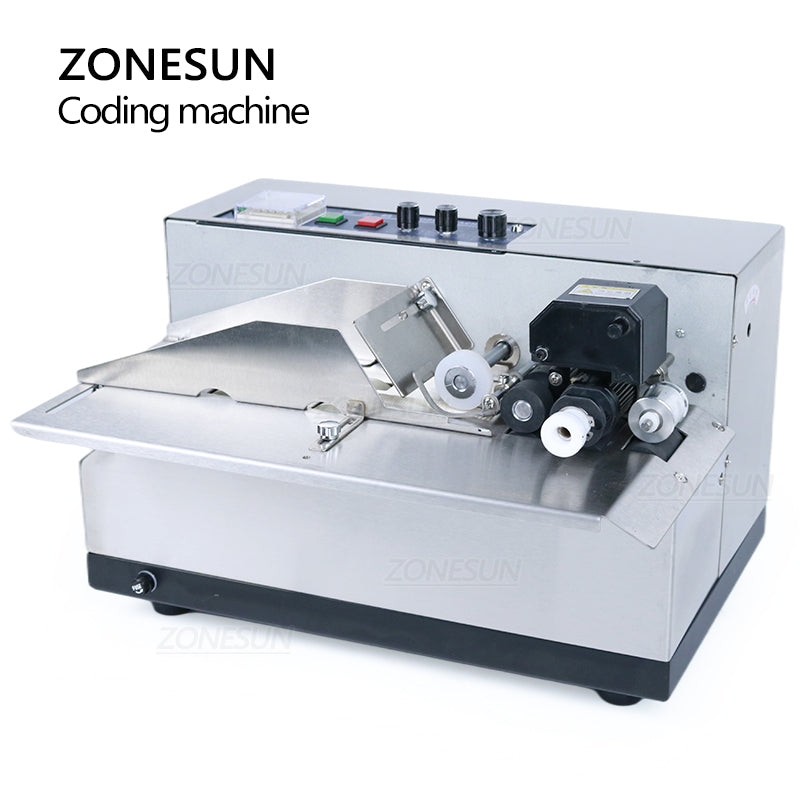

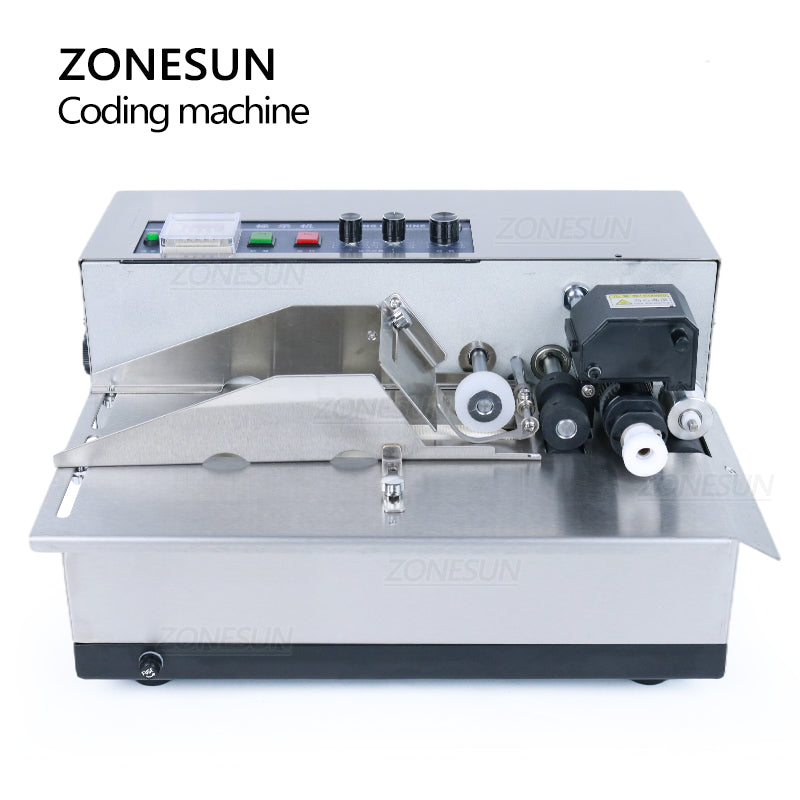

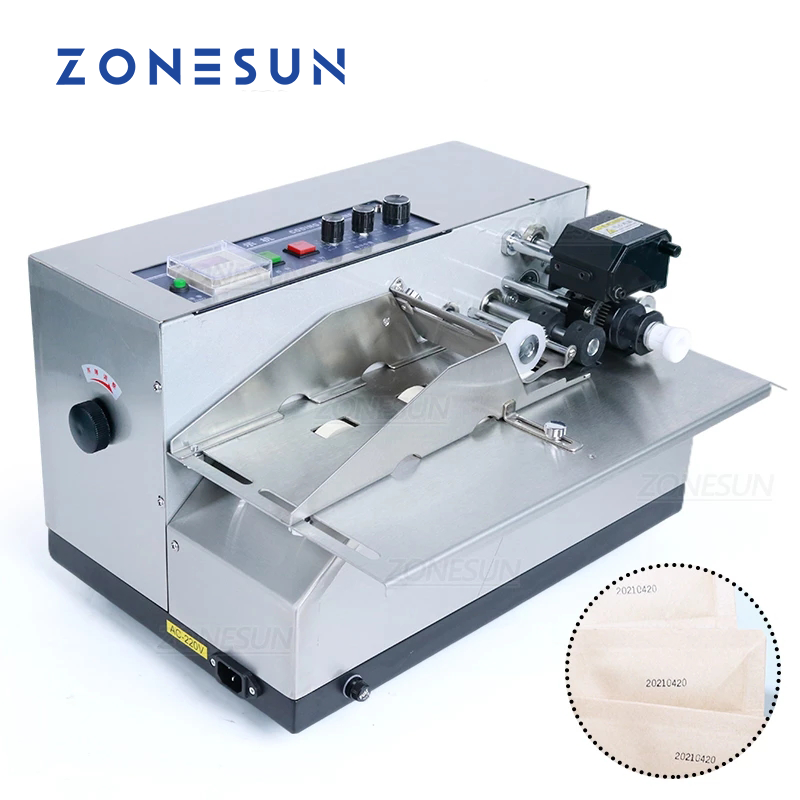

MY-380F solid-ink coding machine fit for printing label on paper, thin cardboard, plastic film and aluminum foil. Adopt solid-ink coding, characterized by high definition, instant printing & instant dry, various colors selectable and strong adhesion.

Characteristic

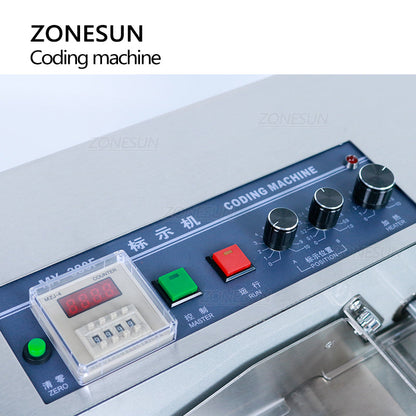

  • Adopt photoelectric mechanism technology, automatic temperature control, auto counting, adjustable print position.
  • The printing position can be adjusted by rotating the knob, easy to operate.
  • Work efficiently and automatically at high speed, up to 30pcs per minute.
  • The thickness can be adjusted as needed, making it suitable for products of different thickness.
  • With the function of paging and printing date at one machine, saving labor cost and improving efficiency.

Parameter

Machine Model

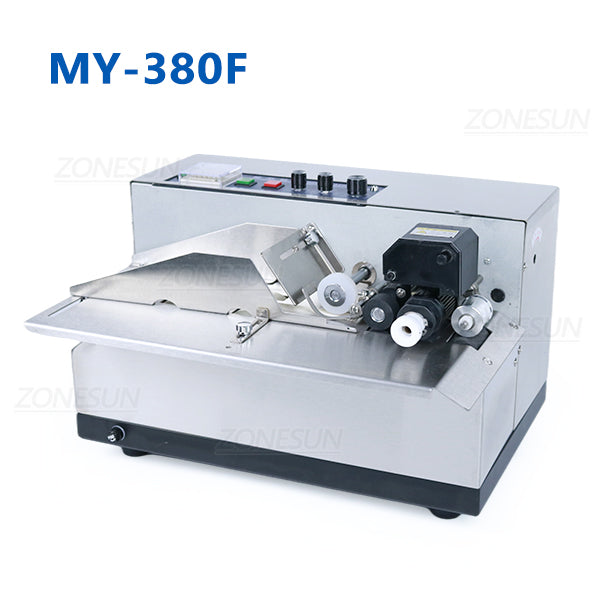

MY-380F

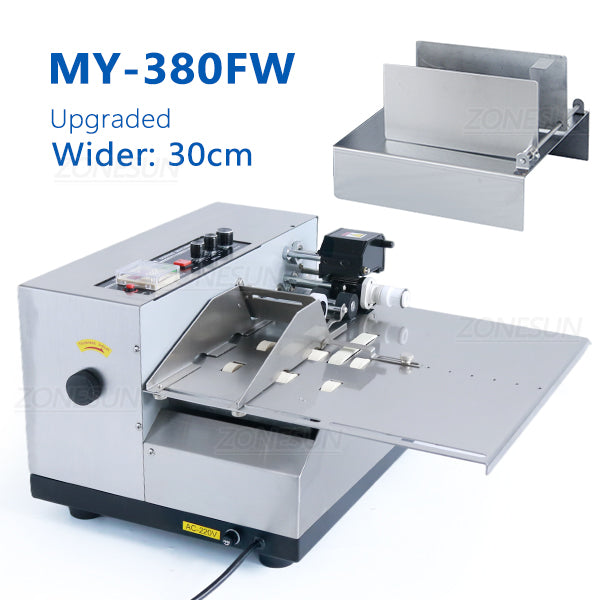

MY-380FW

Feature

Standard

Wider Type

Voltage

AC 220V/110V 50-60Hz

Power

180W

Solid InkRollSize(OD*H)

φ36×32MM(default),φ36*16MM,φ36*32MM,φ36*36MM,φ36*40MM

ApplicableFont Size

2*3.5*6.8mm(T, default)3*3.5*6.8mm(T)

Attention

Please remark which ink roll and letters you want in the order, or we’ll ship the defaulted one.(One machine is only with one type of letters and ink roll)

Working Speed

12.5m/min

Printing Speed

≤300 times/min

Printing Lines

Max 11 Lines, 15pcs letters(based on2*3.5*6.8mm)

Minimum Product Size(L*W)

55*30MM

50*30MM

Maximum Product Size(L*W)

500*190MM

500*300MM

Product’s Thickness

10-25MM

Print Position

Unilateral 60-250mm

Font

Number 0-9, Alphabet A-Z

Machine Size

440*365*260mm

440*465*300mm

Machine Weight

22kg

24kg

Package Size

510*410*340mm

560*510*340mm

Package Weight

23kg

25kg


Notice

STANDARD MACHINE is 220V, if you need 110V. PLS contact to us or leave message, or we will ship 220V in Euro Plug Directly. Thank you!
