ZONESUN ZS-AFC7 Single Nozzle Magnetic Pump Liquid Filling and Capping Machine

ZONESUN ZS-AFC7 Single Nozzle Magnetic Pump Liquid Filling and Capping Machine

Normál ár $8,350.00 USD
Normál ár Akciós ár $8,350.00 USD
Akciós Elfogyott
A szállítási költséget a megrendeléskor számítjuk ki.
Voltage

DESCRIPTION

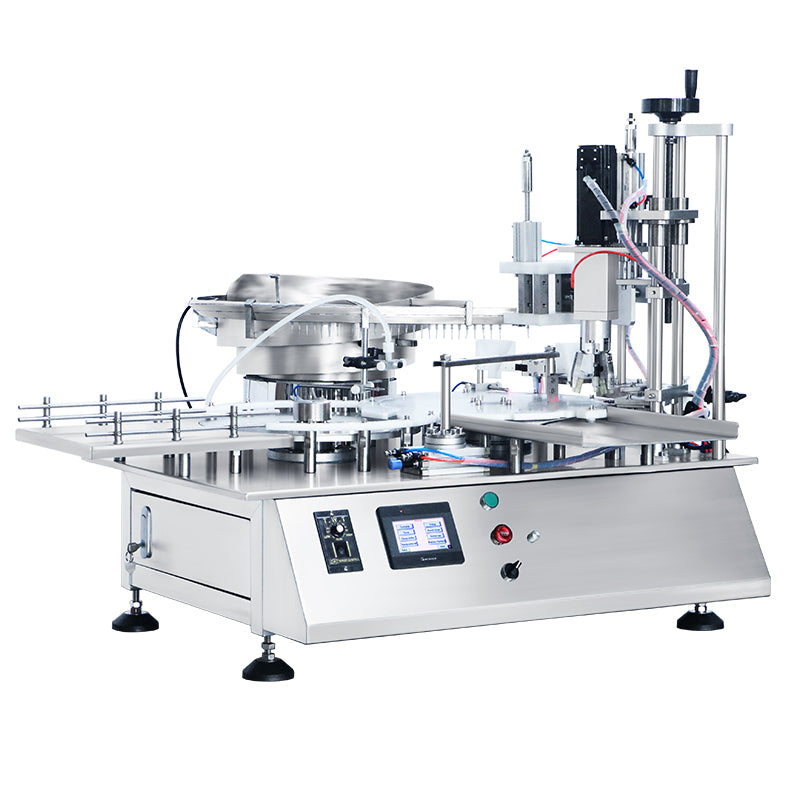

This filling capping machine is designed for mini bottles like eyedrop bottles, essential oil bottles, and perfume sample bottles. It can sort bottles, fill liquid, feed caps, and tighten bottle caps. It is also equipped with a cap vibratory bowl sorter which can fill liquid automatically. It greatly saves labor and space.

PARAMETER

Machine Model

ZS-AFC7

Machine power

1000W

Machine voltage

110/220V 50-60HZ

Filling pump

Magnetic Pump

Recommended filling range

10-200ml

Pump maximum flow rate

4L/min

Suitable bottle height

About 10-100mm

Suitable bottle diameter

About 15-100mm

Suitable cover size

φ=10-50mm

Working speed

About 30 bottles/min

Machine size

About 980*820*960mm(machine)

About 510*720*620mm(vibratory bowl sorter)

Machine weight

About 200kg

Package size

About 1060*750*1060mm(machine)

About 750*550*590mm(vibratory bowl sorter)

Package weight

About 175kg(machine)

About 90kg(vibratory bowl sorter)









PRODUCT DETAILS

CONTROL PANEL



PLC controls, touch screen, color display. Customization for a local language is available.





TURNTABLE



Vial unscrambling





FILLING



Magnetic pump, accurate.





WORKTABLE



12 stations, custom size





FEEDING



With a cap feeder, custom size.





CAPPING



Robotic hand. It won't stop until the cap is screwed.
