ZONESUN ZS-ZB250S Horizontal Flow Wrapping Machine

ZONESUN ZS-ZB250S Horizontal Flow Wrapping Machine

Harga reguler $5,349.00 USD
Harga reguler Harga obral $5,349.00 USD
Obral Habis
Biaya pengiriman dihitung saat checkout.
Voltage

DESCRIPTION

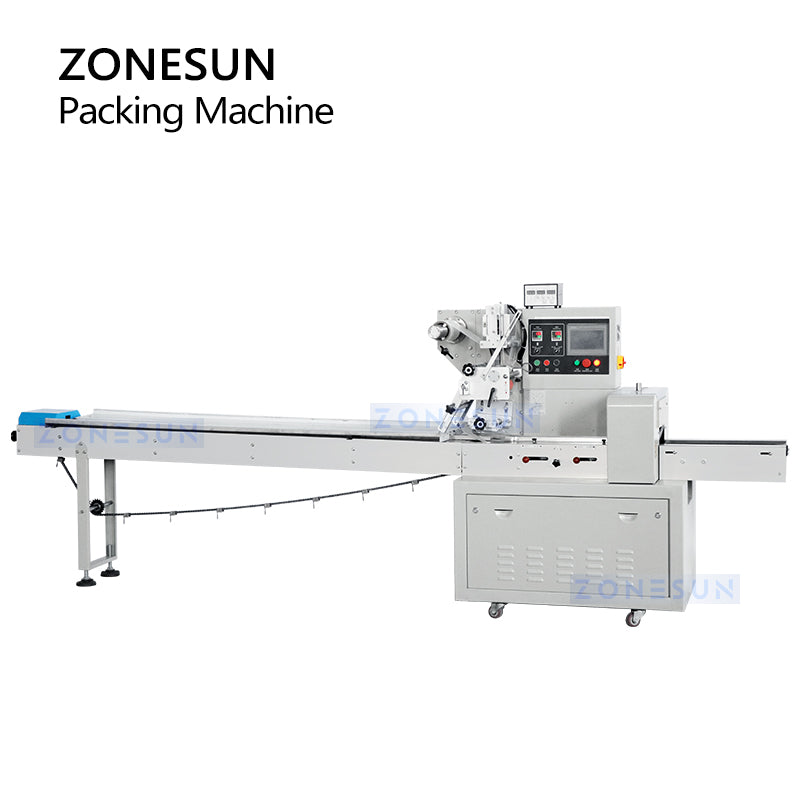

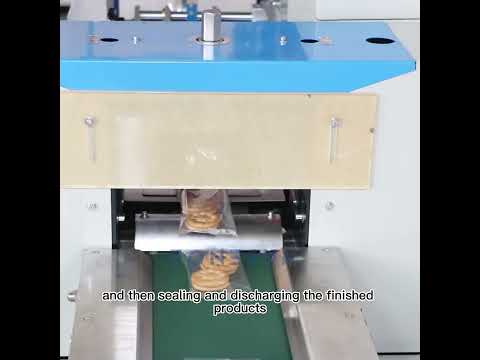

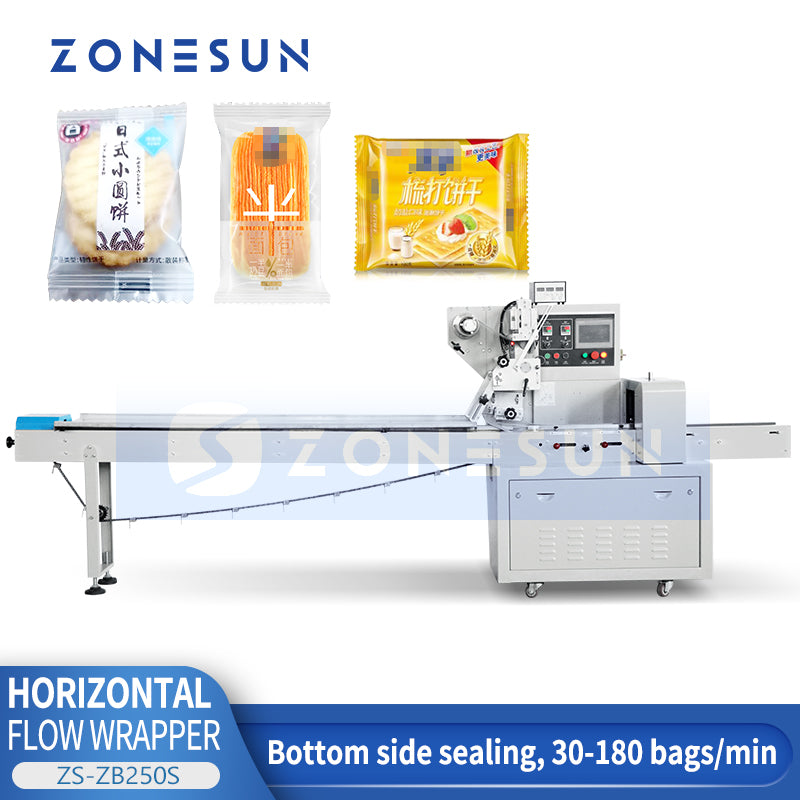

This is a horizontal flow wrapper. It performs three tasks in one fluid, and continuous motion, including infeed and spacing of items, wrapping the film around the items, and then sealing and discharging the finished products. It is widely used in the product packaging industry. Compared with ZS-ZB350X, it is designed without a sensor for the goods and the conveyor has a spacing function.


PARAMETER

Type

ZS-ZB250S

Power

110/220/380V,50/60Hz,2.4KW

Film width

Max:250mm (Customizable)

Bag length

65-190mm,120-280mm (Customizable)

Bag width

30-120mm (Customizable)

Product height

Max:65mm (Customizable)

Film roll diameter

Max:250mm

Middle side sealing

Bottom side sealing

Packaging rate

30-180bag/min

Packaging materials

OPP, OPP/CPP, KOP/CPP, ALU-FILM

Packing Size

About 2570*530*400mm+1420*790*1570mm

Package Weight

About 68+327kg







PRODUCT DETAILS

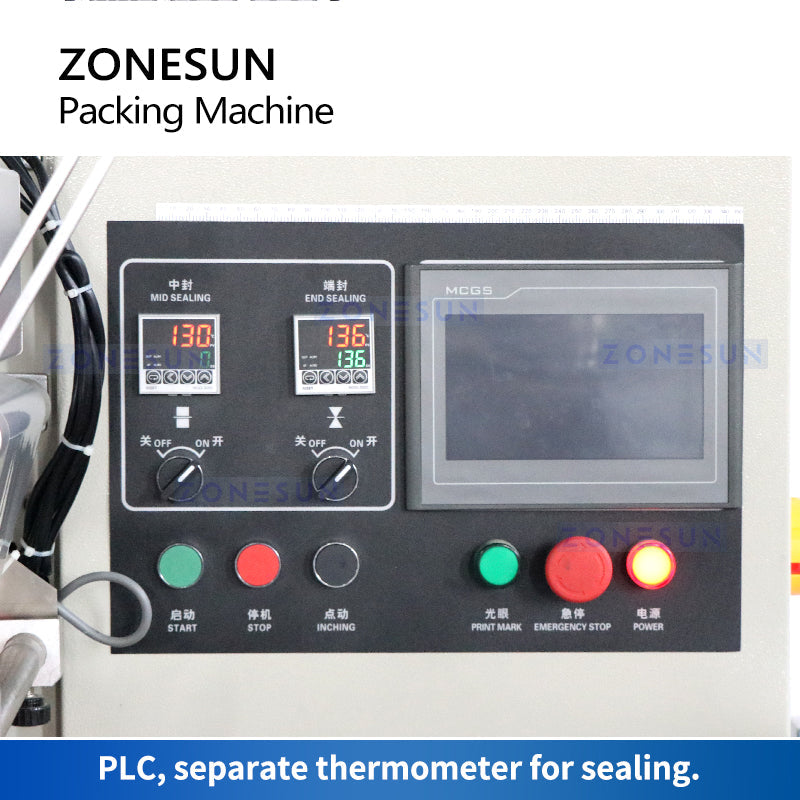

CONTROL PANEL



PLC, touchscreen, user-friendly HMI, separate thermometer for sealing.

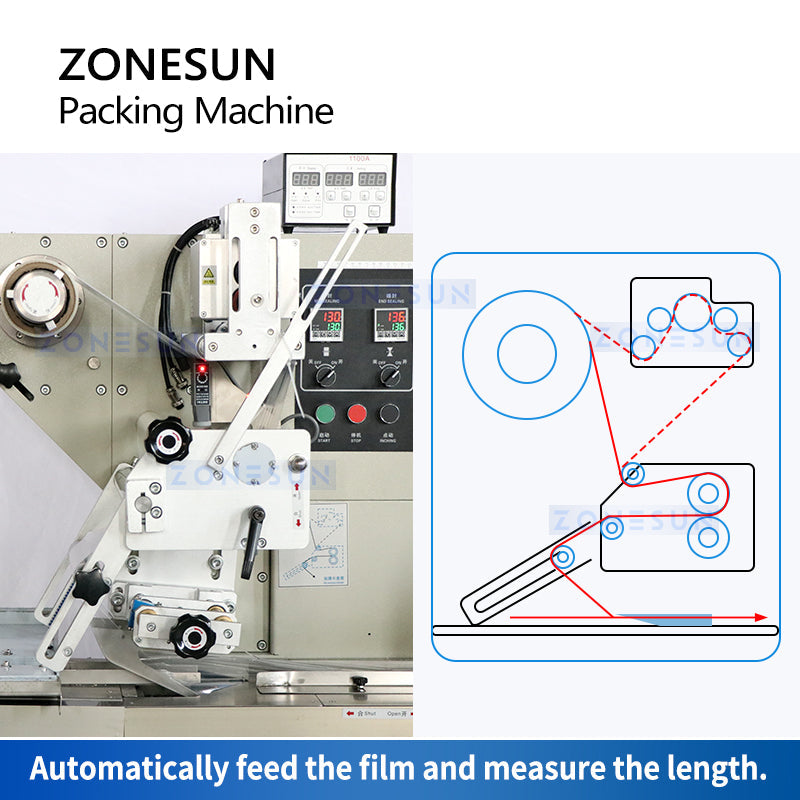

FILM FEEDING



Automatically feed the film.
The max width of the film roll for this model is 250mm. Contact us for other options.

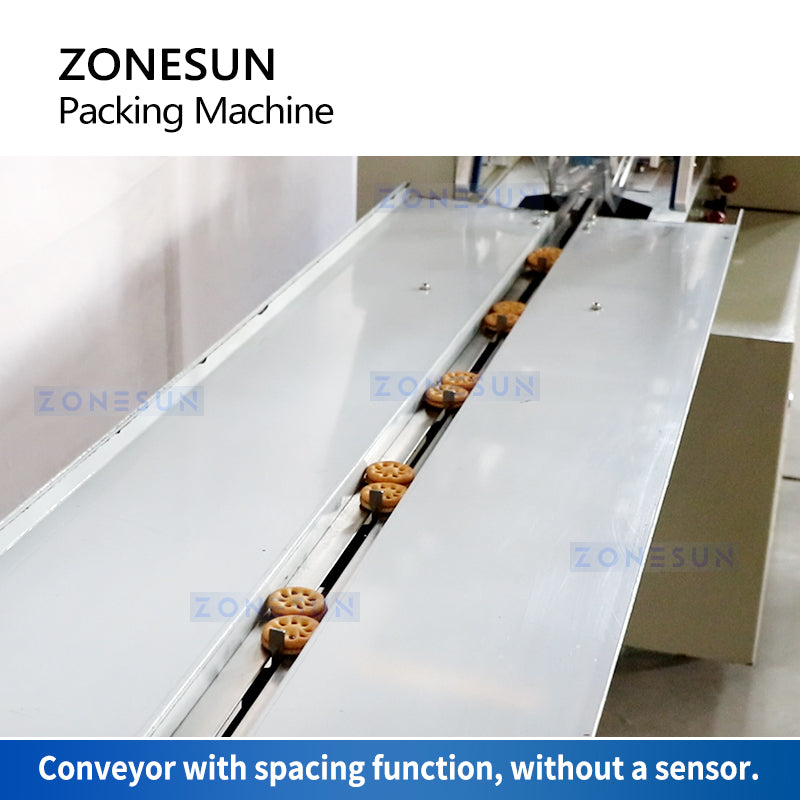

TRANSPORTING



Conveyor with spacing function, without a sensor.
Customization for a sensor option is available.

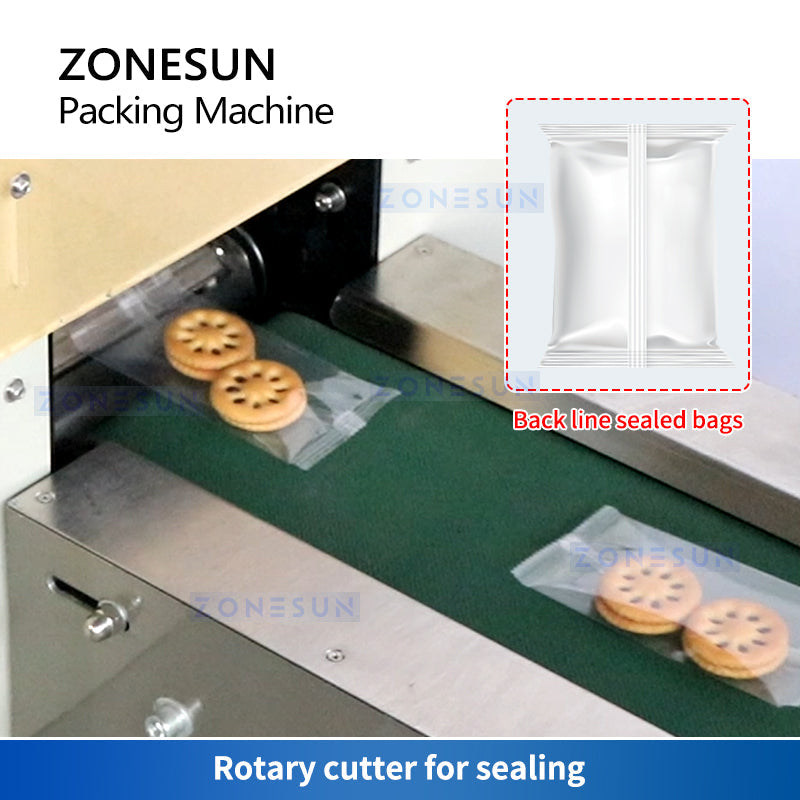

SEALING



The sealing pattern for this model is back line sealing only. It is applicable to many materials, such as OPP, OPP/CPP, KOP/CPP, Alu-film, and bubble wrap.
