ZONESUN Automatic Paste Filling Packing Machine

ZONESUN Automatic Paste Filling Packing Machine

정가 $4,499.10 USD
정가 할인가 $4,499.10 USD
할인 품절
배송료는 결제 시 계산됩니다.
Size
Filling Capacity

Description

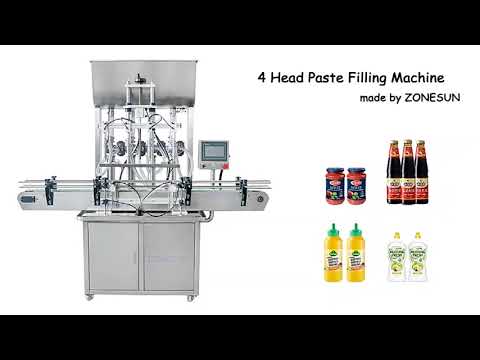

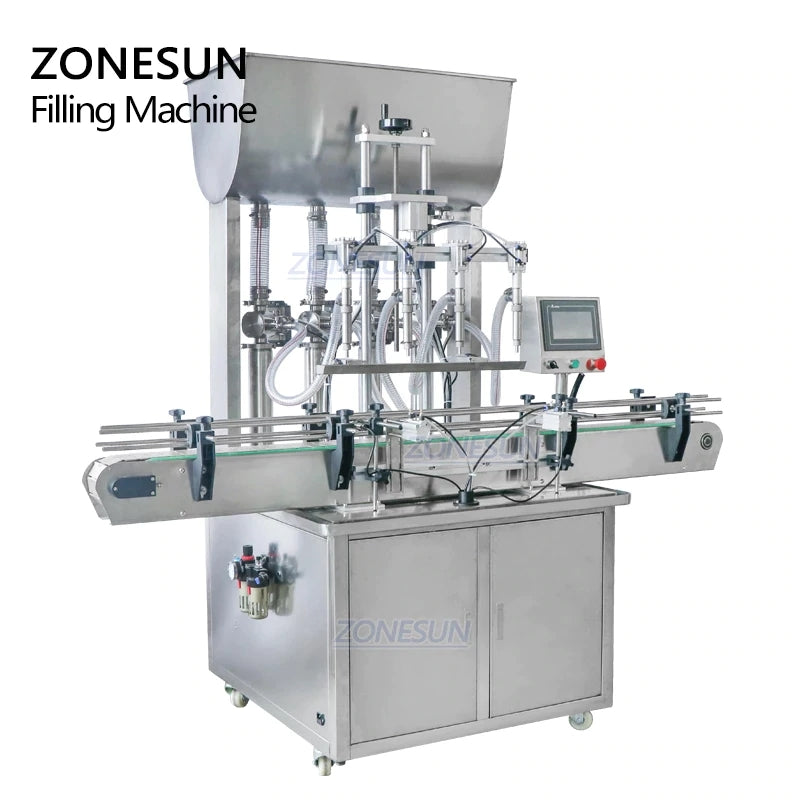

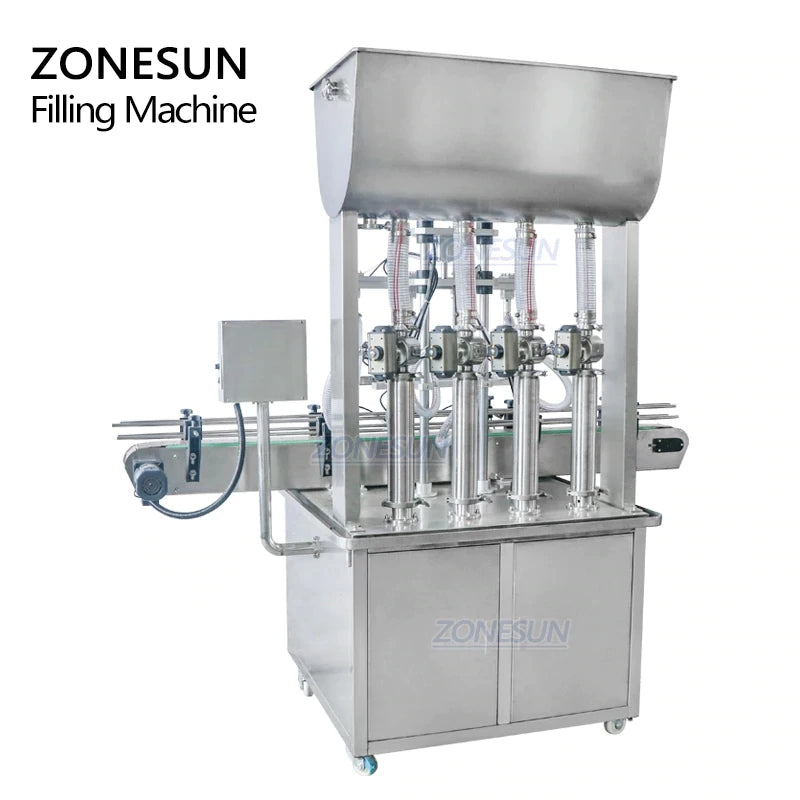

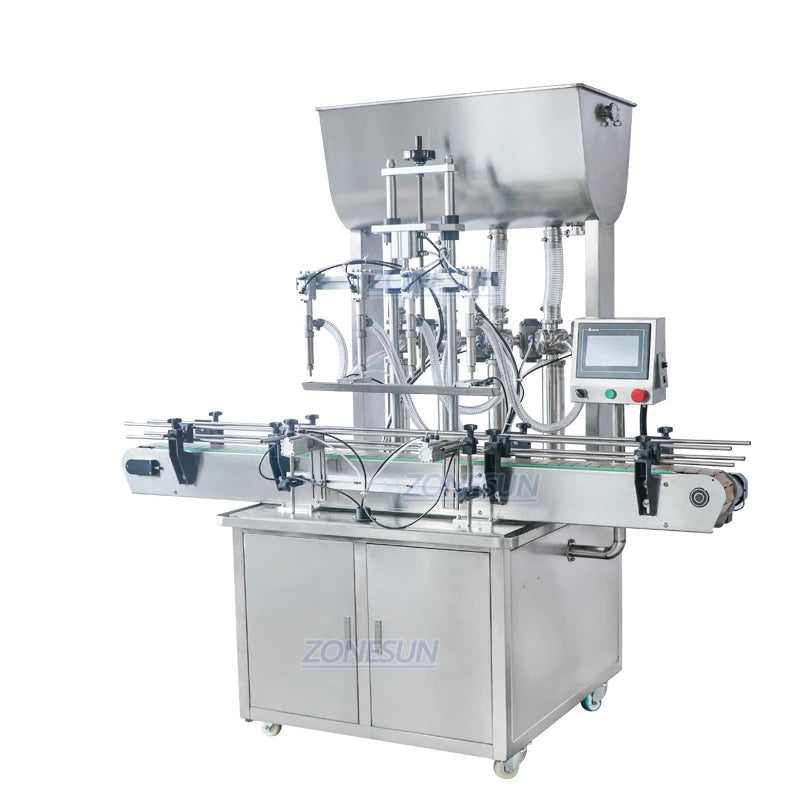

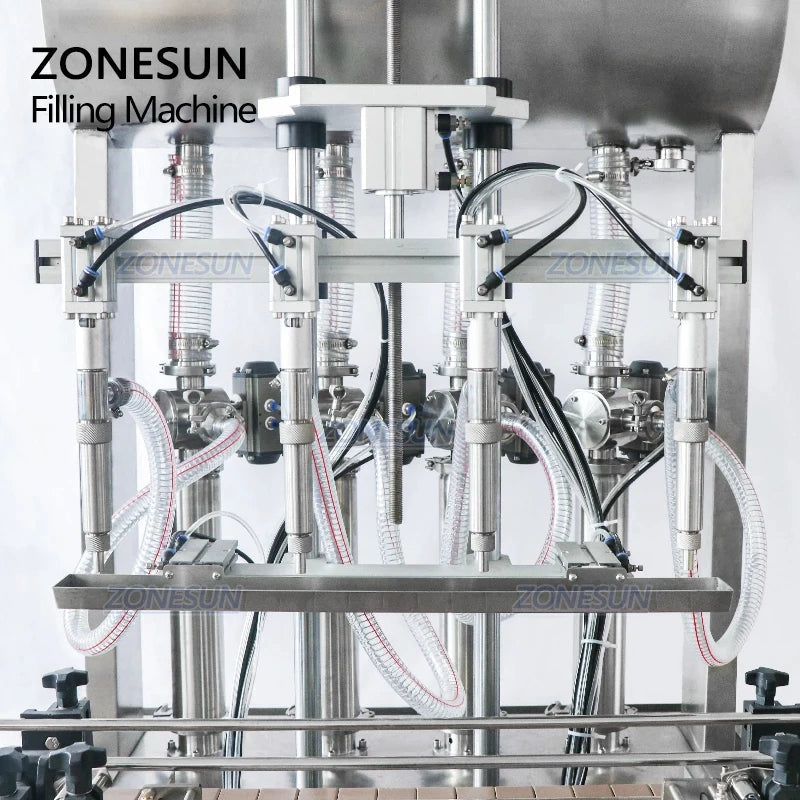

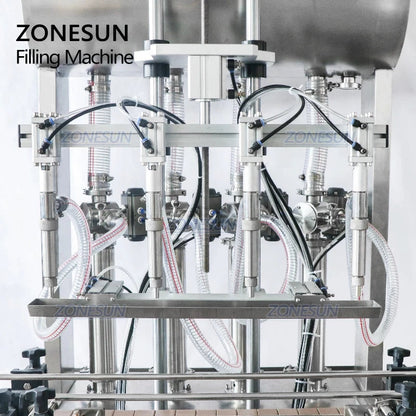

This 4 nozzles paste filling machine is designed for filling paste like curry paste,tomato sauce,pepper sauce,each nozzle can be controlled separately,the filling range and speed are adjustable according to operation.This machine can work with capping machine and labeling machine to realize automated production.

Application

It is widely used in the flling of various semi-fluids, pastes, viscous bodies, sauces and various granule-containing materials, such as pulp-containing beverages, honey, jams, ketchup, chili sauce, bean paste, shrimp paste, apple Sauce, salad dressing, etc.


Parameter

Model

ZS-YT2T-2P

ZS-YT4T-4P

ZS-YT6T-6P

ZS-YT8T-8P

Voltage

 110/220V 50-60HZ  800W

Filling Range

5-100ml/10-300ml/50-500ml/100-1000ml/500-3000ml/1000-5000ml

Working Speed

(base on water)

10-40bottles/min

20-50bottles/min

30-70bottles/min

40-80bottles/min

Filling Accuracy

 ≤+1%

Conveyor Size

About 1990*100mm(L*W)

Filling Nozzle Size

Φ10mm

Size of air compressor connector

Φ10mm

Machine Size

About 1990*950*1970mm(4 Heads)

Package Weight

220kg

260kg

300kg

600kg

Package Size

2000*1200*

2300mm

2000*1200*

2300mm

2500*1300*

2300mm

2800*1300*

2500mm


Notice

This machine need customized your bottle size so if you want to buy it please contact with us first time.And the machine is very heavy,contact with us get the cheaper shipping cost,thank you for your support.
