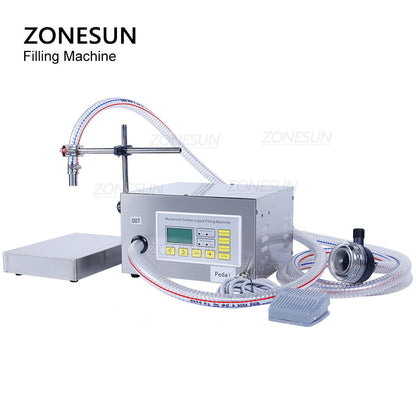

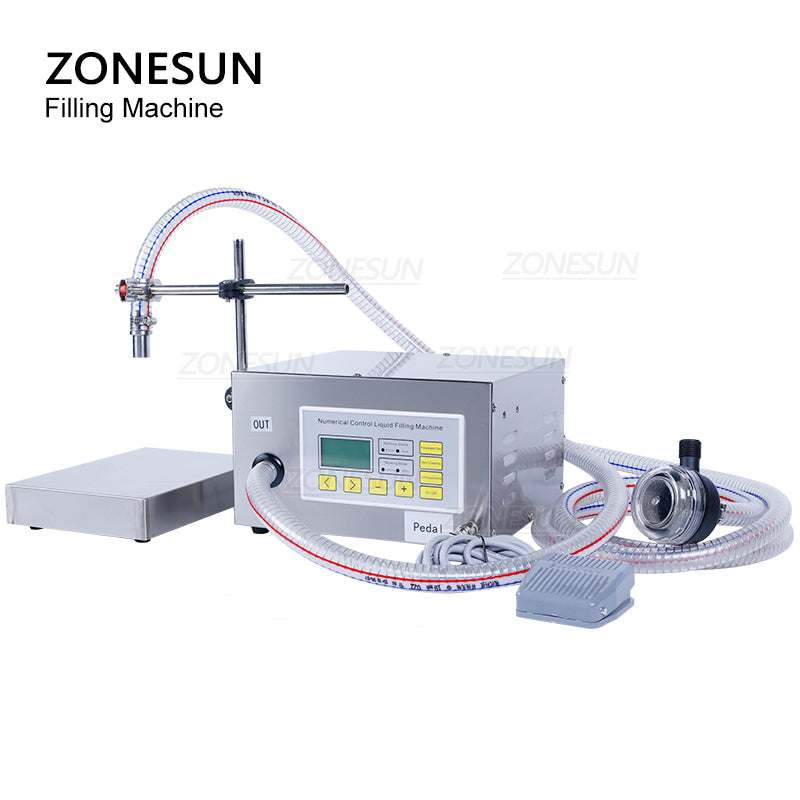

ZONESUN ZS-DP621W Semi automatic Diaphragm Pump Liquid Weighing and Filling Machine
ZONESUN ZS-DP621W Semi automatic Diaphragm Pump Liquid Weighing and Filling Machine
픽업 사용 가능 여부를 로드할 수 없습니다.
Parameter
|
Machine Model |
ZS-DP621W |
|
Machine Power |
110/220V 50-60Hz 210W |
|
Machine Pump |
Diaphragm Pump |
|
Max Flow Rate |
17L/min |
|
Filling Range |
150ml-17L |
|
Weighing Range |
150g-10kg |
|
Filling Error |
About±10g |
|
Hose Diameter |
19mm( ID ) /25mm( OD ) |
|
Hose Length |
2m( inlet ) /1.5m( outlet ) |
|
Filling Nozzle Diameter |
12mm /19mm |
|
Liquid Temperature |
＜75℃ |
|
Max Suction Distance |
3m |
|
Max Head of Delivery |
5m |
|
Suitable Liquid |
Ink,cooking oil,water,juice,perfume |
|
Machine Size |
280*250*170mm |
|
Machine Weight |
9.88kg |
|
Package Size |
400*370*240mm |
|
Package Weight |
10.5kg |
Description
This semi-automatic filling and weighing machine is suitable for liquid which is without particle, like shower gel, shampoo, perfume, milk, etc. Equipped with powerful diaphragm pump, it can fill 17L/min, improving working efficiency. With electronic scale, it can fill liquid more accurately. It can be widely used in food, daily chemical, pharmaceutical industries.
