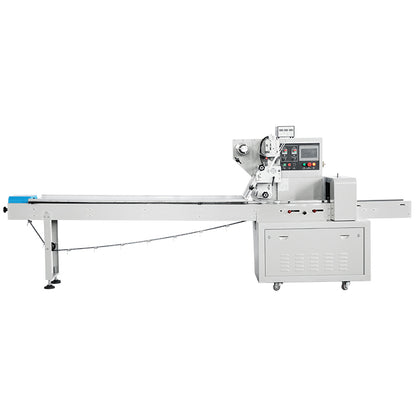

ZONESUN ZS-ZB250S Horizontal Flow Wrapping Machine
ZONESUN ZS-ZB250S Horizontal Flow Wrapping Machine
픽업 사용 가능 여부를 로드할 수 없습니다.
DESCRIPTION
This is a horizontal flow wrapper. It performs three tasks in one fluid, and continuous motion, including infeed and spacing of items, wrapping the film around the items, and then sealing and discharging the finished products. It is widely used in the product packaging industry. Compared with ZS-ZB350X, it is designed without a sensor for the goods and the conveyor has a spacing function.
PARAMETER
|
Type |
ZS-ZB250S |
|
Power |
110/220/380V,50/60Hz,2.4KW |
|
Film width |
Max:250mm (Customizable) |
|
Bag length |
65-190mm,120-280mm (Customizable) |
|
Bag width |
30-120mm (Customizable) |
|
Product height |
Max:65mm (Customizable) |
|
Film roll diameter |
Max:250mm |
|
Middle side sealing |
Bottom side sealing |
|
Packaging rate |
30-180bag/min |
|
Packaging materials |
OPP, OPP/CPP, KOP/CPP, ALU-FILM |
|
Packing Size |
About 2570*530*400mm+1420*790*1570mm |
|
Package Weight |
About 68+327kg |
PRODUCT DETAILS
CONTROL PANEL
PLC, touchscreen, user-friendly HMI, separate thermometer for sealing.
FILM FEEDING
Automatically feed the film.
The max width of the film roll for this model is 250mm. Contact us for other options.
TRANSPORTING
Conveyor with spacing function, without a sensor.
Customization for a sensor option is available.
SEALING
The sealing pattern for this model is back line sealing only. It is applicable to many materials, such as OPP, OPP/CPP, KOP/CPP, Alu-film, and bubble wrap.
