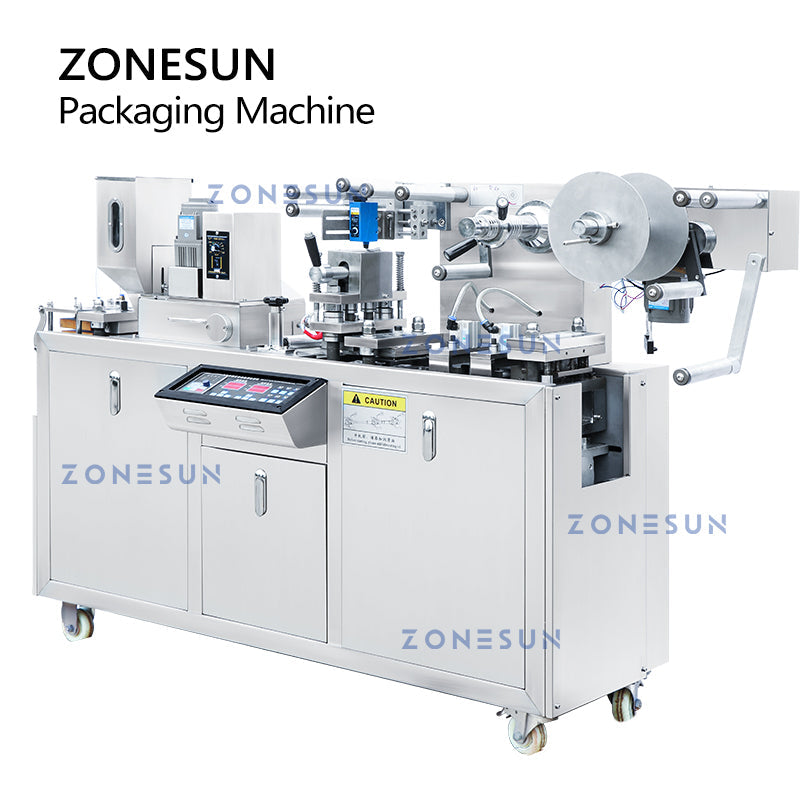

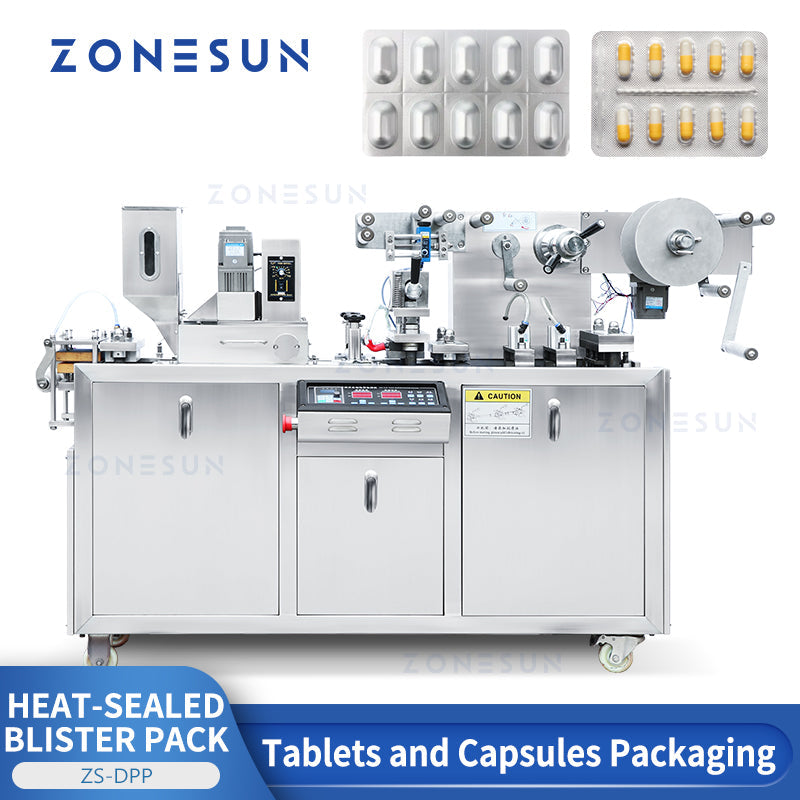

ZONESUN ZS-DPPA Automatic Liquid / Paste / Irregular Material Filling Blister Sealing Machine

ZONESUN ZS-DPPA Automatic Liquid / Paste / Irregular Material Filling Blister Sealing Machine

정가 $5,499.00 USD
정가 할인가 $5,499.00 USD
할인 품절
배송료는 결제 시 계산됩니다.
Model
Voltage

DESCRIPTION

The blister packaging machine, with the functions of aluminum or plastic molding, forming, material filling, and sealing, has a high degree of automation and can reduce packaging costs. The machine occupies less space, with low noise and no pollution to the working environment.

PARAMETER

Model

DPP-A

DPP-B


Cutting Frequency

10-50 times/min

10-35 times/min


Capacity

600-3000pcs/h

3000-14000pcs/h


Max shaping areas and depth(mm)

750×110×30

110×120×26(Standard depth is 14mm)


Standard
section(mm)

80×57

55-57(Customizable)


Special section(mm)

100×110×30(Customizable)

80×57(Customizable)


Air
Pressure

0.4-0.7Mpa

0.4-0.6Mpa


Power supply

380V/220V 50Hz 1.8kw

380V 50Hz 3.8kw


Main motor
power

0.75kw

1.5kw

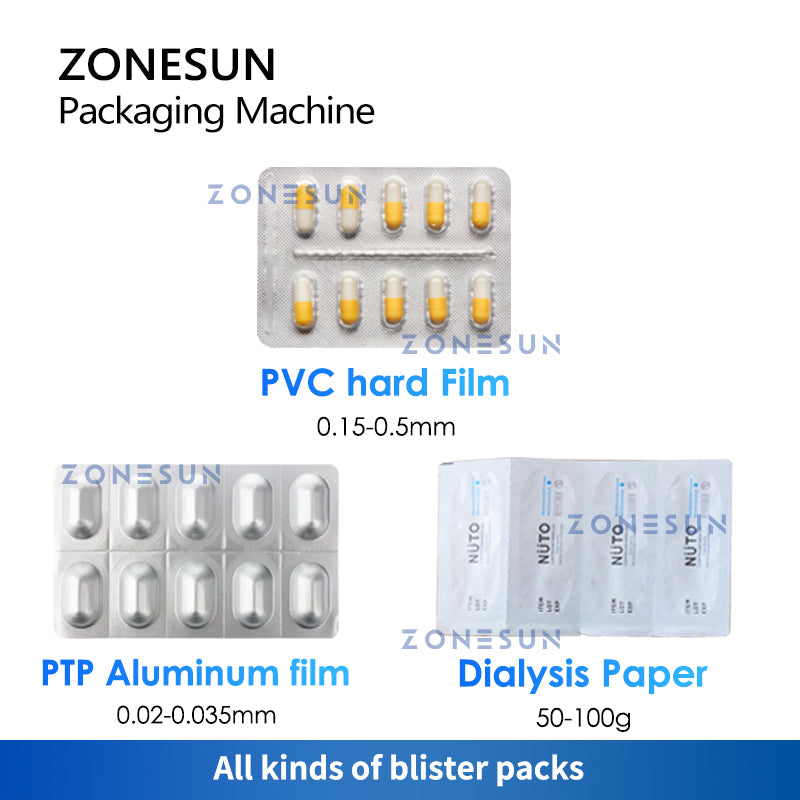

PVC hard film(mm)

0.15-0.5×90

0.15-0.5×140


PTP
aluminum foil(mm)

0.02-0.035×90

0.02-0.035×140


Dialysis paper(mm)

50-100g×90

50-100g×140


Dimensions(mm)

1520x580×980

2300×560×1410


Machine weight(kg)

380

750


Scope of
application

φ1.5 or more
pills, compatible with 00-5#capsules, soft capsules, φ5.5-12 plain tablets,
shaped tablets, sugar-coated tablets, etc.

Loading range

2-9999 pieces(adjustable)
