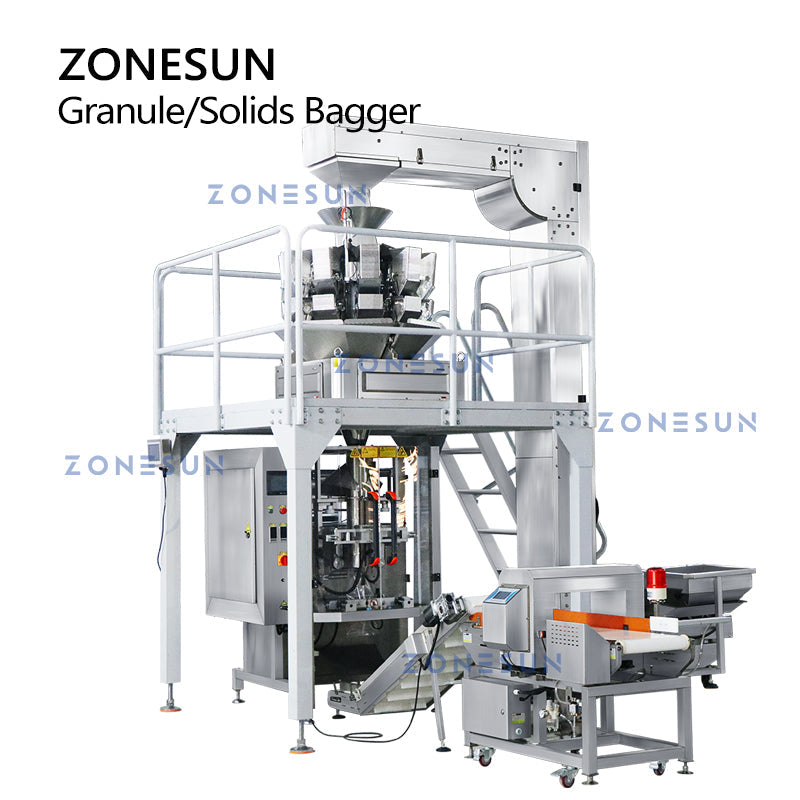

ZONESUN ZS-GW10 Automatic Granule Feeding Weighing Filling Sealing Machine With Metal Detector
ZONESUN ZS-GW10 Automatic Granule Feeding Weighing Filling Sealing Machine With Metal Detector
DESCRIPTION
This is a granule bagger. Compared with others, it uses a multi-head weigher for filling, which is accurate and stable. It is designed with a Z-feeder. A metal detector and a check weigher are available as options.
It is applicable to candy, melon seeds, jelly, pet food, puffed food, pistachios, peanuts, nuts, almonds, raisins, large shell nuts, hardware, plastic granules, and other irregular shapes of materials.
PARAMETER
Model |
ZS-GW10 |
Feeder |
Z-type |
Weigher |
10 heads |
Bagging Type |
Back-sided sealing |
Range |
500-3000g |
Bagging Size |
Length: 100-400mm Width: 100-300mm |
Max Film Width |
630mm |
Film Thickness |
0.06-0.12mm |
Capacity |
15-30 bags/min |
Controls |
PLC touchscreen |
Air Source |
0.3 cbm/min, 0.65Mpa |
Power |
5500 W |
Voltage |
Triphase, 380V, 50Hz |
Case |
Stainless steel |
Net weight |
1800kg |
