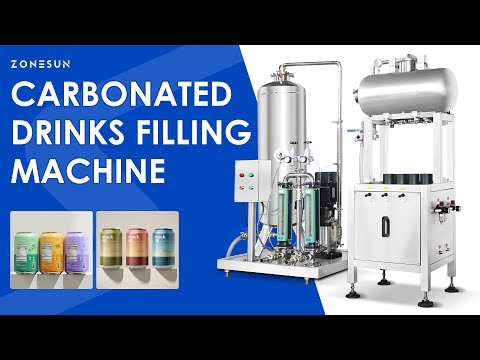

ZONESUN ZS-CF4A Semi-automatic 4 Heads Carbonated Drinks Sparkling Wine Soda Mixing Filling Machine

 This semi-automatic filling system is used to mixing material and fill carbonated drinks into metal cans.This machine is easy to operate and has compact machine body, it is suitable for the small or the medium scale production of soda drinks or carbonated drinks.

Parameter

Filling Machine

• Filling nozzle quantity:4
• Filling material temperature:1-4℃
• Filling material pressure:0.2-0.3MPa
• Working capacity:240-400BPH
• Inlet & Outlet diameter:For 330/500ml Metal Cans(Can be customized)
• Air pressure:0.5-0.7MPa
• CO2 pressure:0.2-0.3MPa
• Package size:About 950*750*1960mm
• Package weight:About 163kg

Mixing Machine

• Technical requirements
• Production capacity:1.5—2T/h
• The mixing ratio of syrup and water:1:2—1:8
• Beverage liquid outlet temperature:<6℃
• Beverage liquid outlet pressure:0.3—0.5Mpa
• Carbonation gas content:3G.V
• Requirements for raw materials
• Inlet pressure of treated water:0.2 Mpa
• Inlet temperature of treated water:<6℃
• Syrup inlet temperature:<4℃
• CO2 inlet pressure:0.28—0.35 Mpa
• CO2 purity:＞99%
• Package size:About 910*1000*1880mm
• Package weight:About 200kg
