ZONESUN Polygon/Irregular Bottle Labeling Machine Sticker Dispenser Machine ZS-TB550V
ZONESUN Polygon/Irregular Bottle Labeling Machine Sticker Dispenser Machine ZS-TB550V
Couldn't load pickup availability
DESCRIPTION

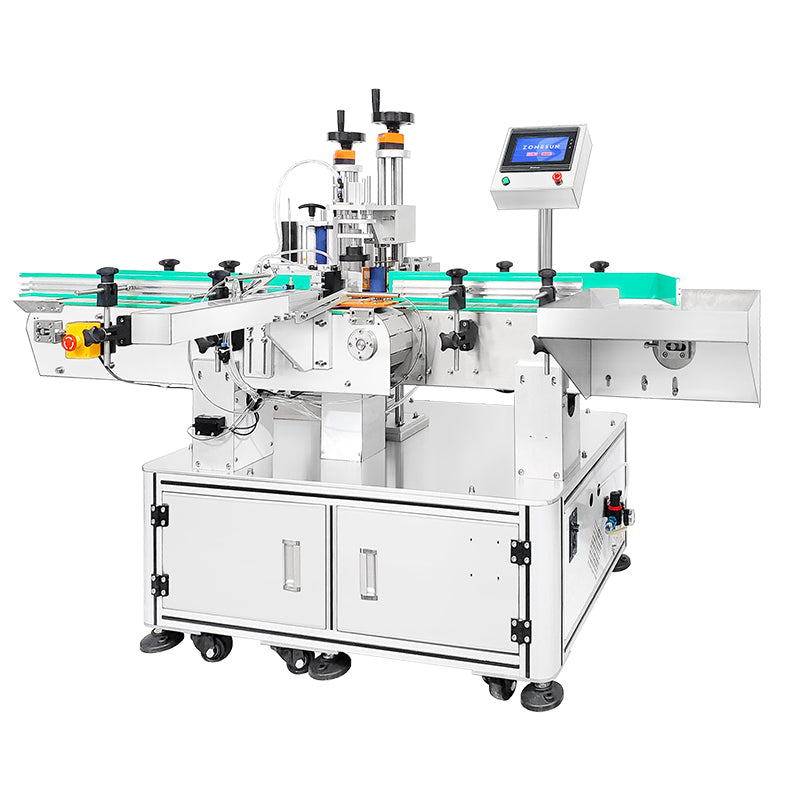

This is an automatic labeling machine. It is designed for accurate and efficient labeling of various polygon products, including bottles, cans, and containers. Equipped with a programmable logic controller (PLC), our labeling machine ensures precise control and consistent performance. With a user-friendly interface and customizable settings, it is the perfect solution for streamlining your labeling process.
Whatever your packaging needs are, you can rely on ZONESUN.
PARAMETER
Machine Model |
ZS-TB550V |
Voltage |
220V 50-60HZ 570W |
Suitable Bottle Size |
φ50-110mm*25-130mm(H) |
Labeling Speed |
25-45 bottles/min |
Labeling Accuracy |
±1mm |
Suitable Label Size |
20mm-130mm(W)*20mm-290mm(H) |
Label Roll OD |
About φ280mm |
Label Roll ID |
About φ76mm |
Air Pressure |
0.4-0.6MPa |
Machine Size |
About 2800*1200*1400mm |
Machine Weight |
About 200kg |
