DESCRIPTION

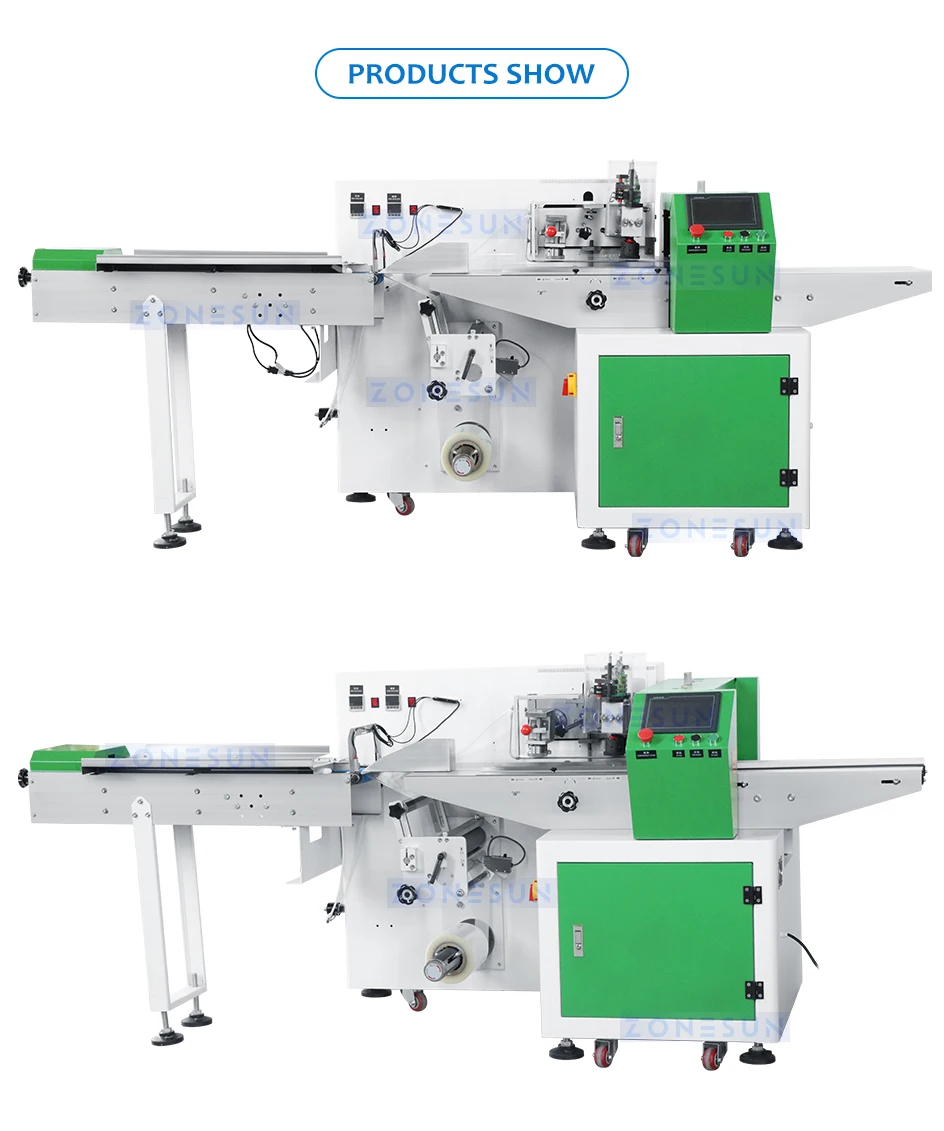

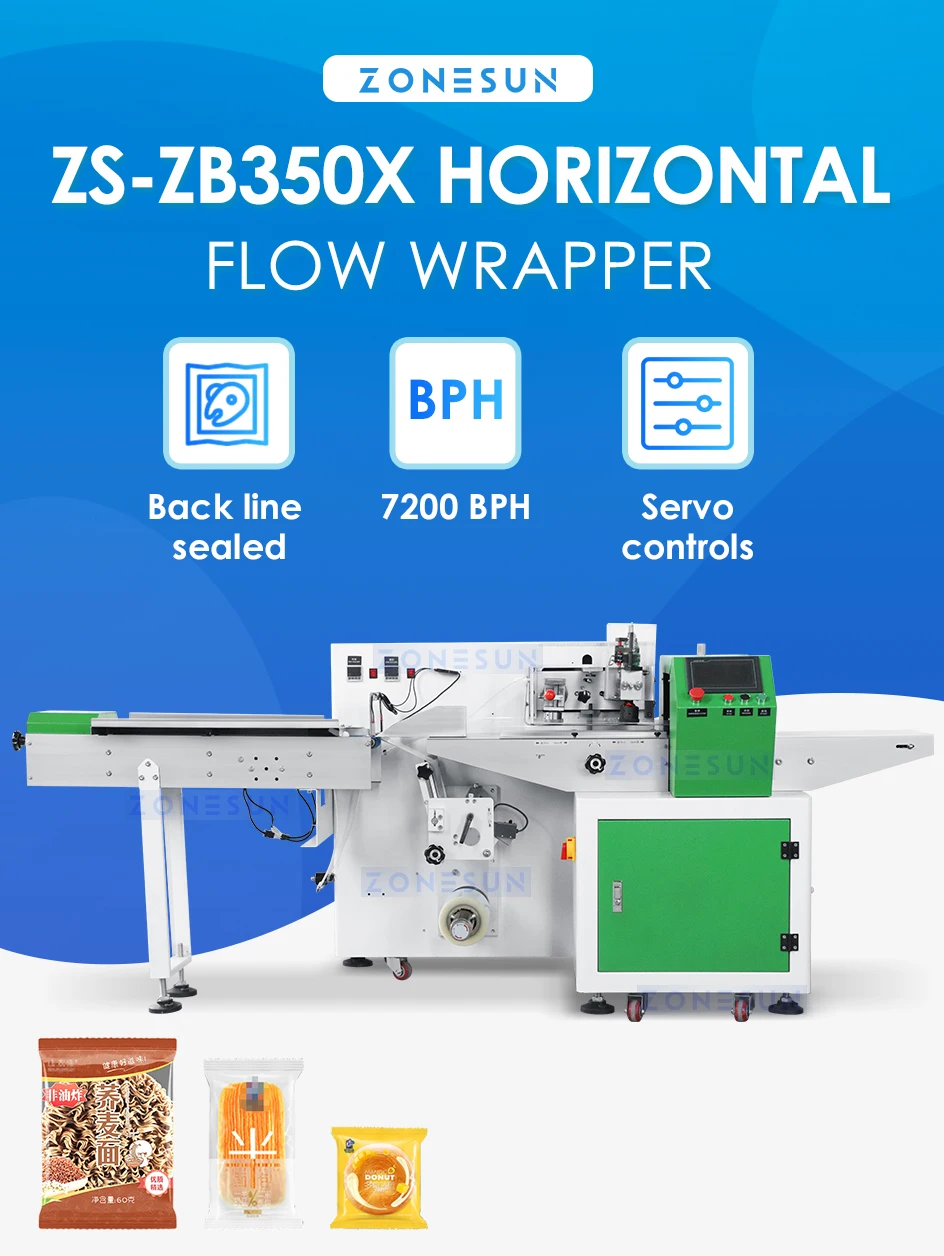

This is a horizontal flow wrapper. It performs three tasks in one fluid, and continuous motion, including infeed and spacing of items, wrapping the film around the items, and then sealing and discharging the finished products. It is widely used in the product packaging industry.

PRODUCT DETAILS

CONTROL PANEL

PLC, touchscreen, user-friendly HMI, separate thermometer for sealing.

FILM FEEDING

Automatically feed the film and measure the length.
The max width of the film roll for this model is 350mm. Contact us for other options.

SENSING

Photoelectric eye, smart detecting
With servo controls, it can automatically measure the bagging length.

SEALING

The sealing pattern for this model is back line sealing only. It is applicable to many materials, such as OPP, OPP/CPP, KOP/CPP, Alu-film, and bubble wrap.
