ZONESUN ZS-FAL180Z3 Full-automatic Peristaltic Pump Liquid Filling Capping Labeling Machine With 2 Unscramblers
ZONESUN ZS-FAL180Z3 Full-automatic Peristaltic Pump Liquid Filling Capping Labeling Machine With 2 Unscramblers
Couldn't load pickup availability
DESCRIPTION

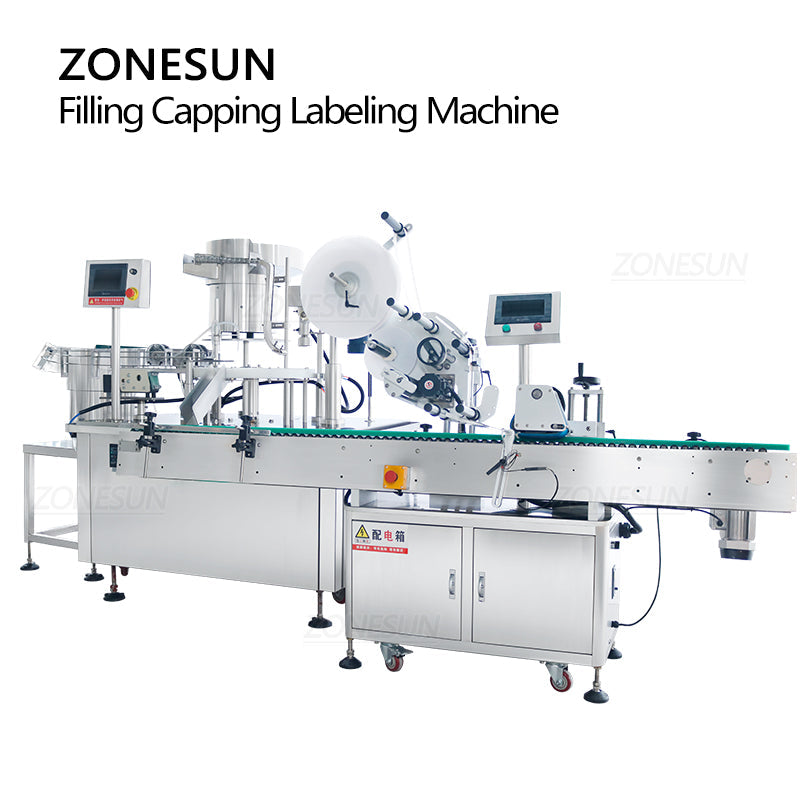

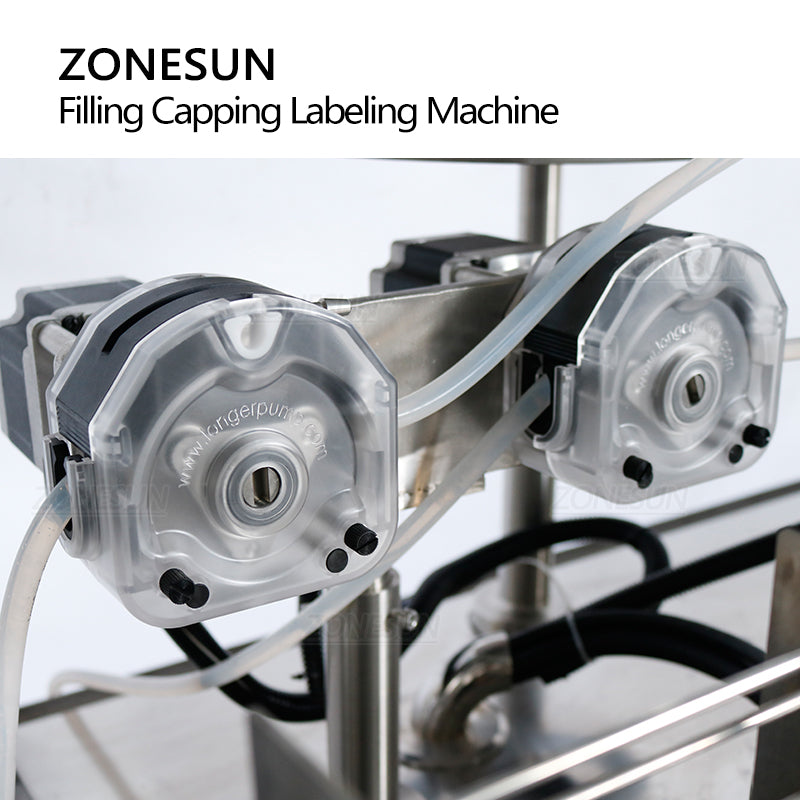

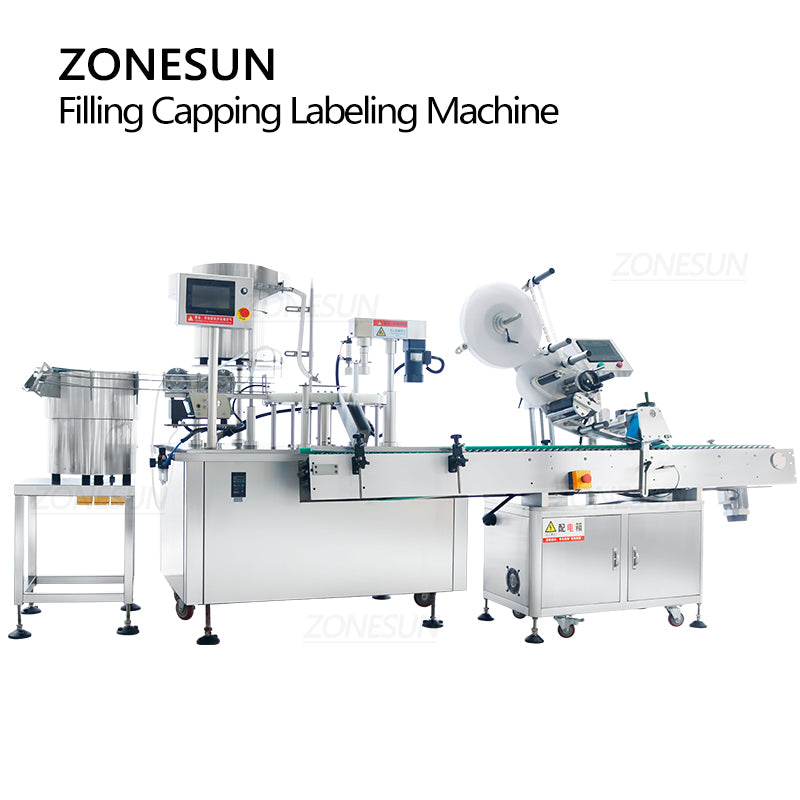

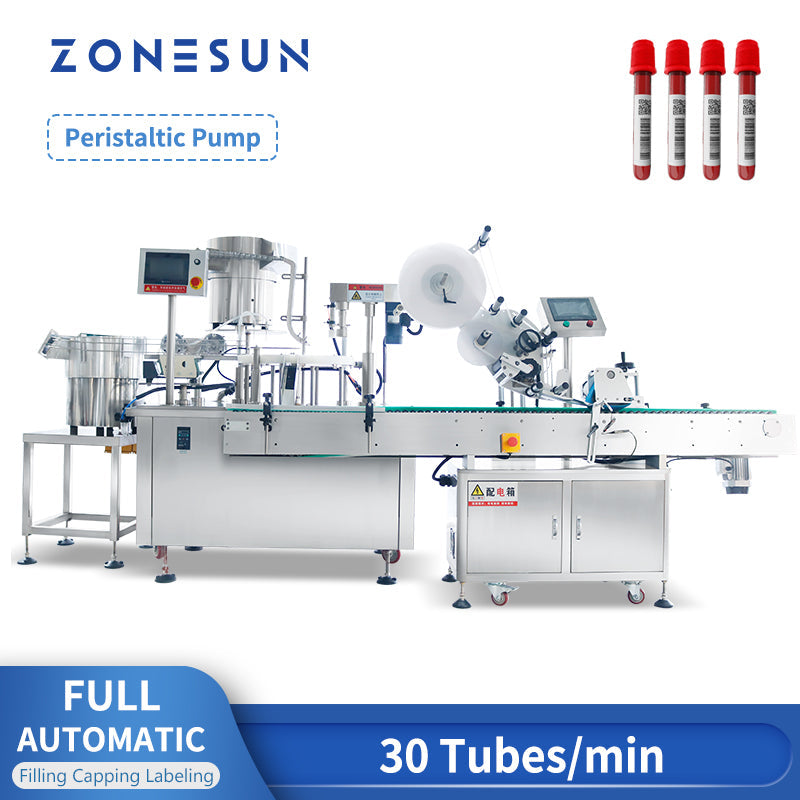

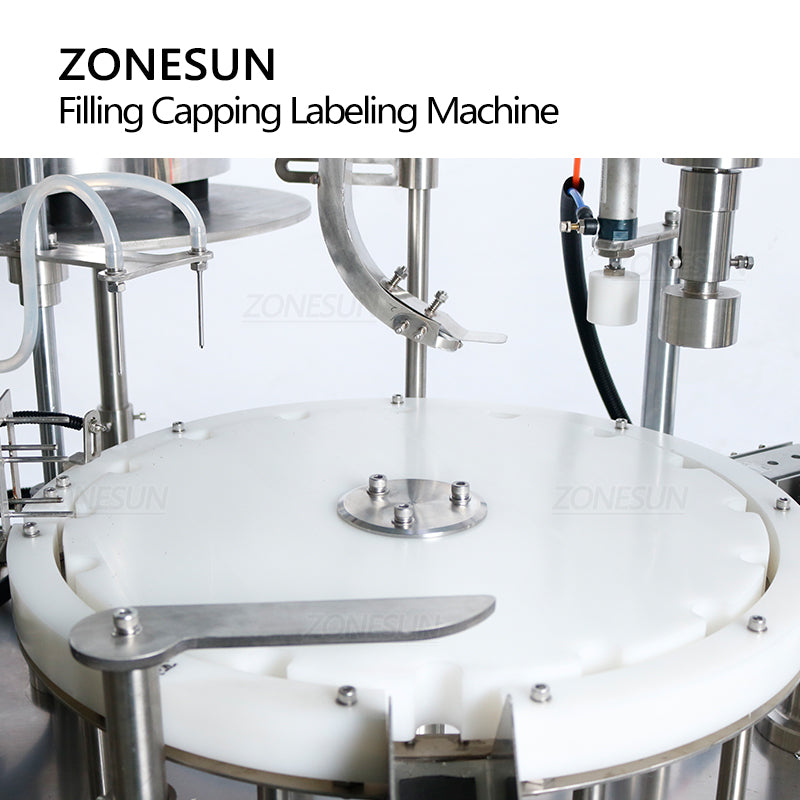

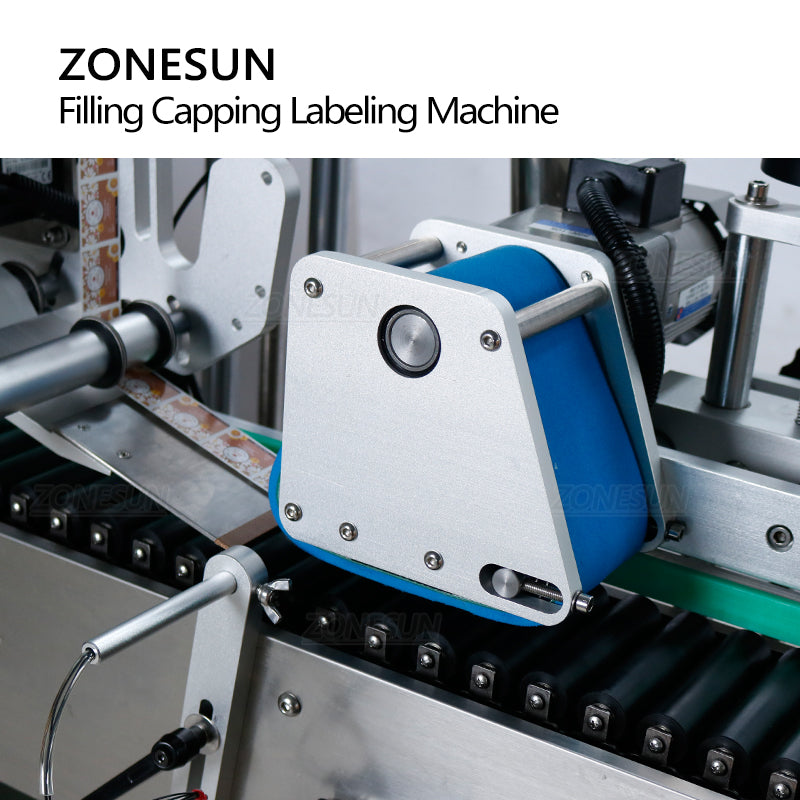

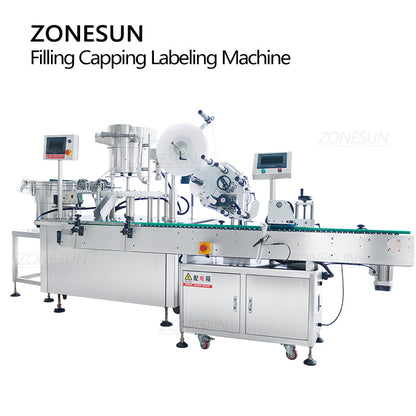

Designed with peristaltic pump, the filling and capping machine is assembled with labeling machine to realize automatic production. With 2 unscramblers, it can feed tubes and caps automatically. The turntable provides precise positioning. It is widely used in chemical and pharmaceutical industries.
APPLICATION
This machine is suitable for filling liquid such as solution and reagent in tubes.
PARAMETER
Machine Model |
ZS-FAL180Z3 |
Voltage |
230V/220V 50-60Hz |
Machine Pump |
Peristaltic pump |
Machine Power |
2KW (filling and capping) 1.25KW (labeling) |
Bottle Diameter |
Customized |
Filling Range |
25ml |
Bottle Height |
Customized |
Cap Diameter |
Customized |
Working Speed |
30 bottles/min(depends on liquid and tube size) |
Machine Size |
1600*1500*1700mm (filling and capping) 2400*850*1600mm (labeling) |
Machine Weight |
500kg (filling and capping) 250kg (labeling) |
Package Size |
1650*1550*1760mm (filling and capping) 2500*900*1760mm (labeling) |
Package Weight |
520kg (filling and capping) 270kg (labeling) |
