ZONESUN ZS-MSZH50 Box Sealing Packaging Machine
ZONESUN ZS-MSZH50 Box Sealing Packaging Machine
Couldn't load pickup availability
DESCRIPTION
This is a carton packaging machine for various products, such as facial masks and skincare products. The procedure includes opening the box, packing material into the box, tucking the flap of the box in, and sealing the box. It can be used with supporting machines to form an automatic production line.

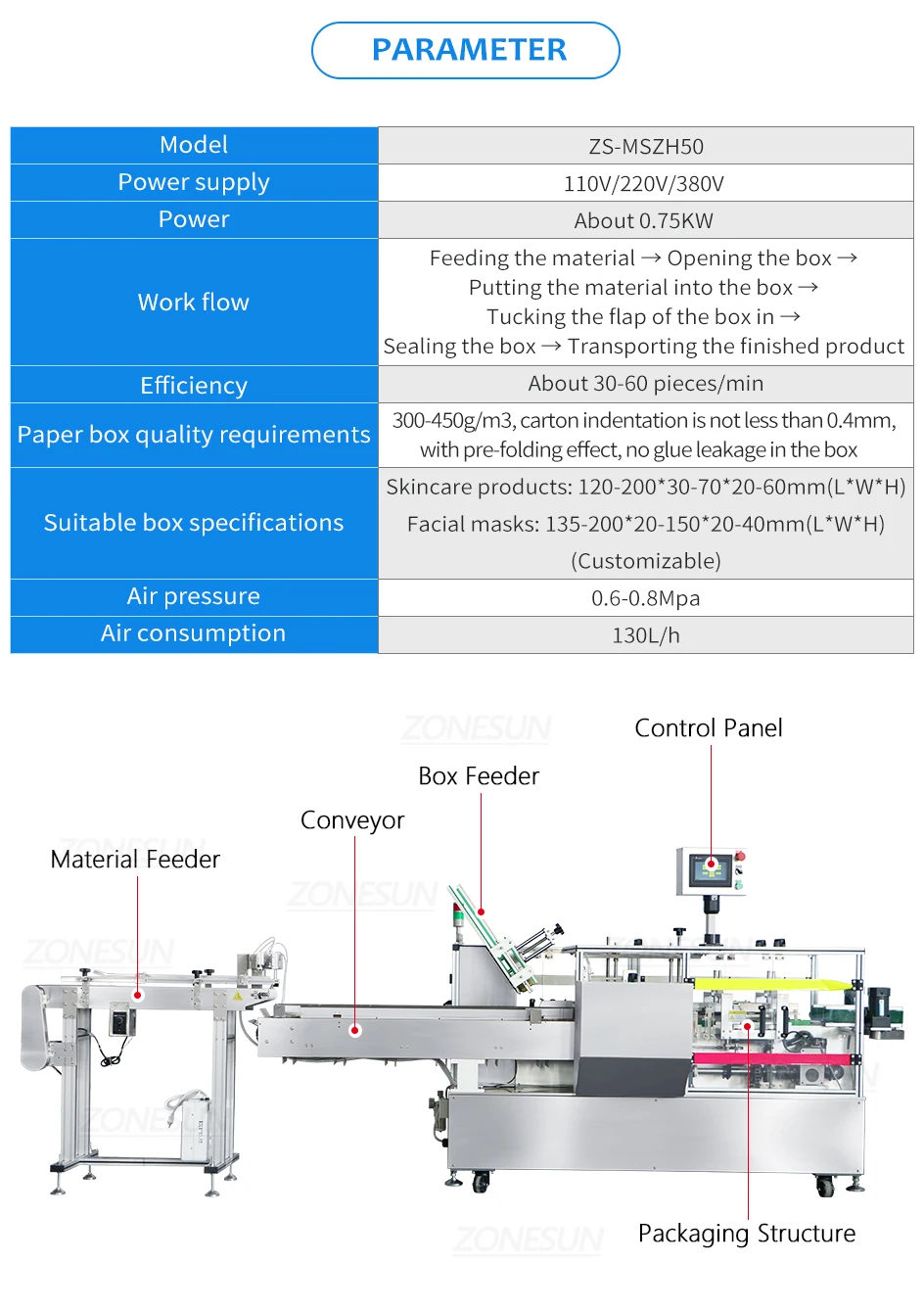

PARAMETER
Model |
ZS-MSZH50 |
Power supply |
110V/220V/380V |
Power |
About 0.75KW |
Work flow |
Feedingthe material → Opening the box → Putting the material into the box → Tucking the flap of the box in → Sealing the box → Transporting the finished product |
Efficiency |
About 30-60 pieces/min |
Paper box quality requirements |
300-450g/m3, carton indentation is not less than 0.4mm, |
Suitable box specifications |
Skincare products: 120-200*30-70*20-60mm(L*W*H) Facial masks: 135-200*20-150*20-40mm(L*W*H) (Customizable) |
Air pressure |
0.6-0.8Mpa |
Air consumption |
130L/h |
PRODUCT DETAILS

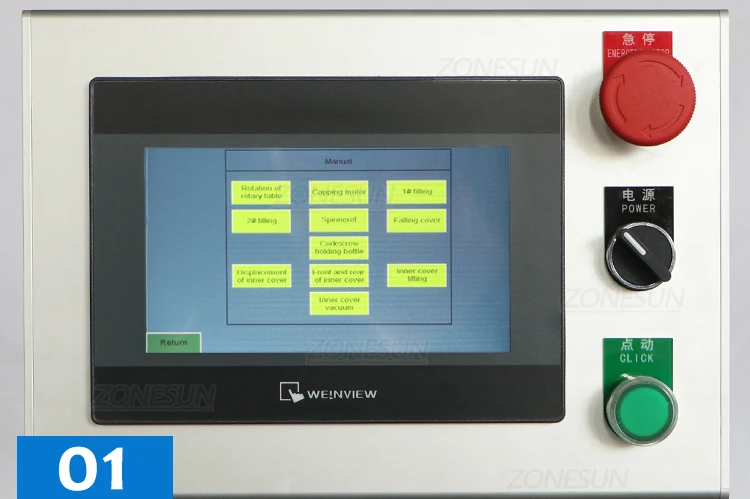

CONTROL PANEL
7-inch Touch screen, PLC controls, English version

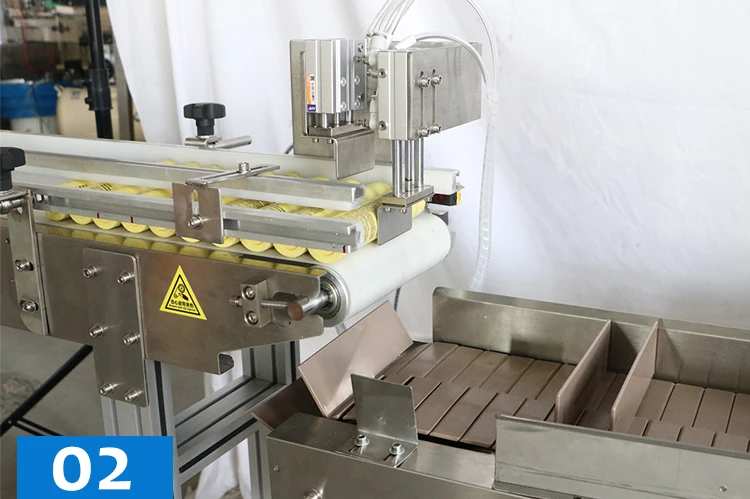

FEEDING
It can automatically feed the material.

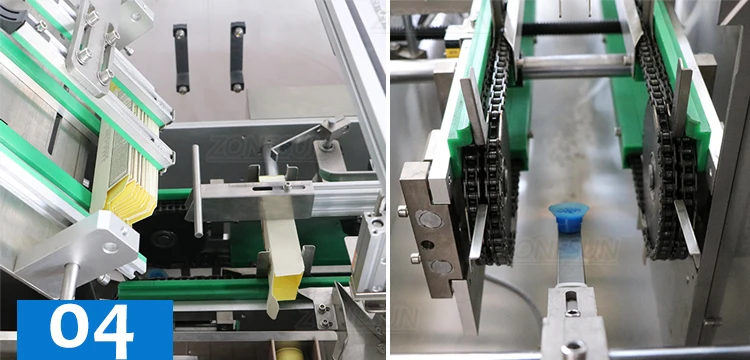

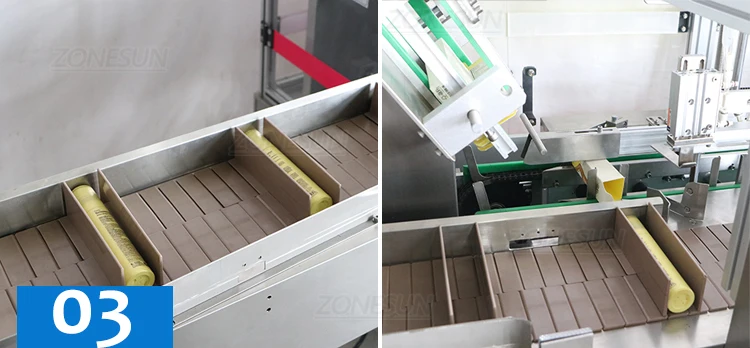

TRANSPORTING
The conveyor is designed with customizable jigs for holding the material.
BOX FEEDER
It adopts a sucker to feed the boxes.

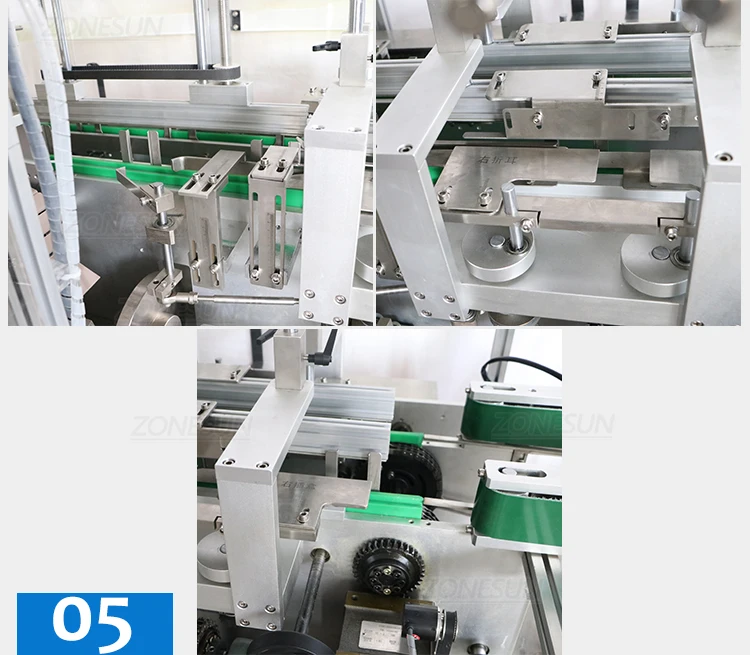

BOXING
It can automatically tuck the flap of the box in.

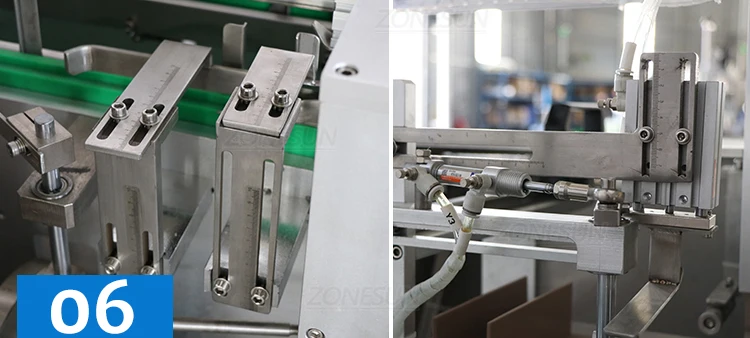

SCALE
Users can easily adjust the machine with the scale.
