ZONESUN ZS-YTW250L Single Nozzle Gear Pump Large Flow Liquid Weighing Filling Machine
ZONESUN ZS-YTW250L Single Nozzle Gear Pump Large Flow Liquid Weighing Filling Machine
Regular price
$5,049.00 USD
Regular price
Sale price
$5,049.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Description

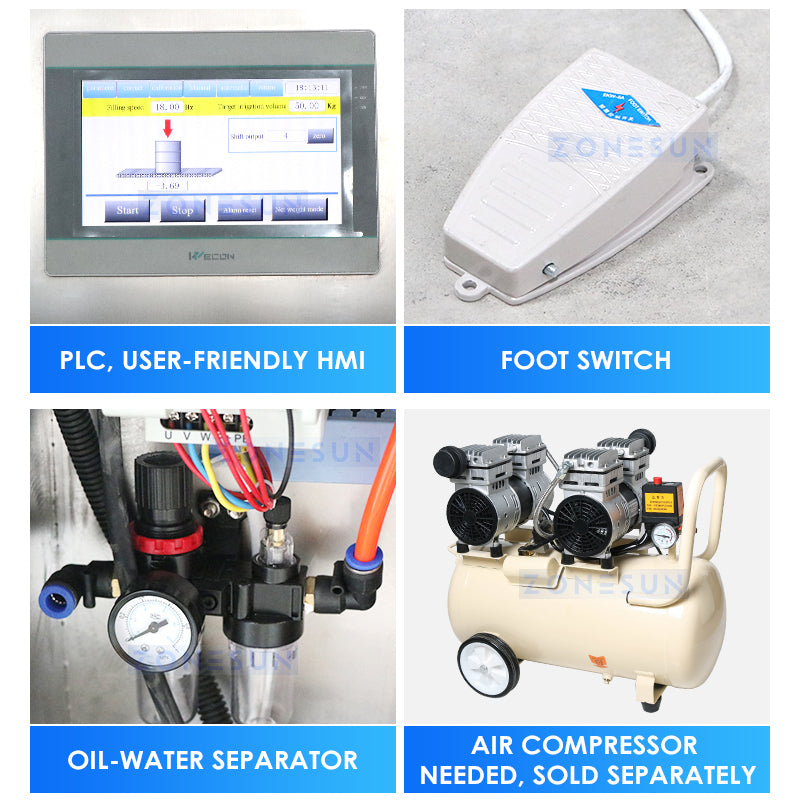

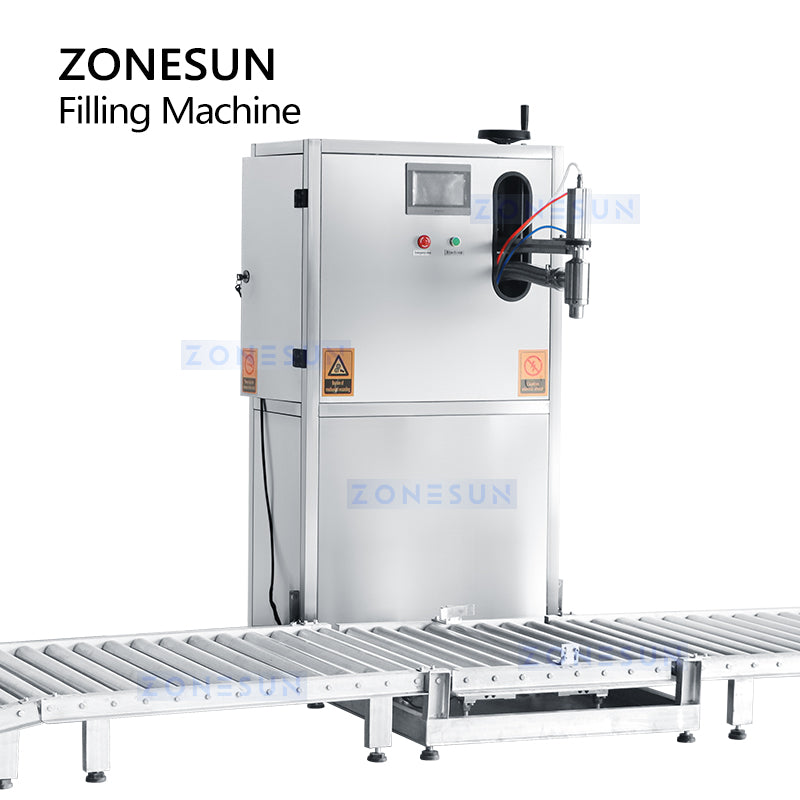

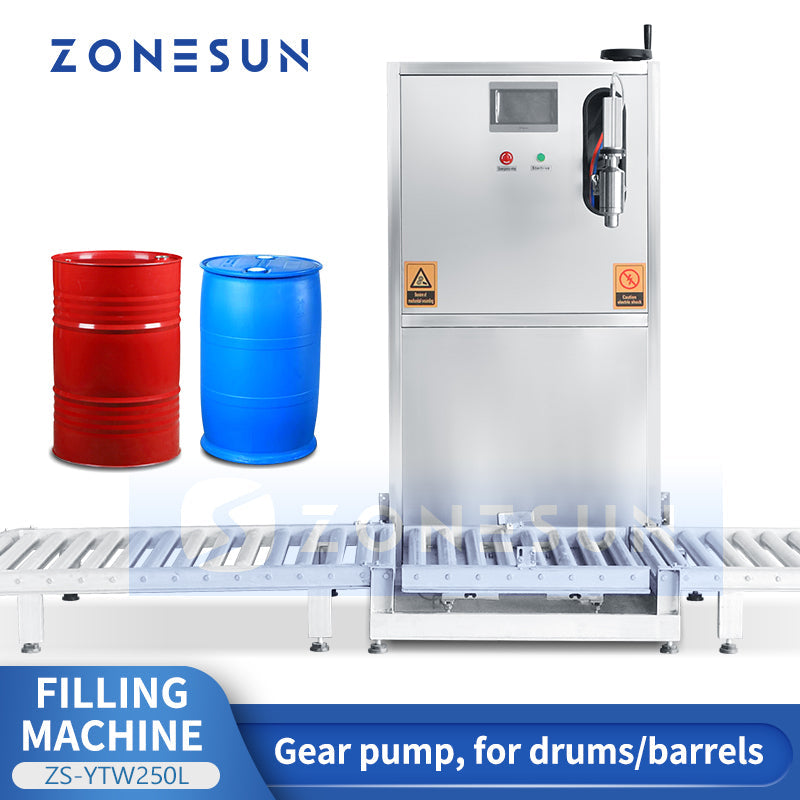

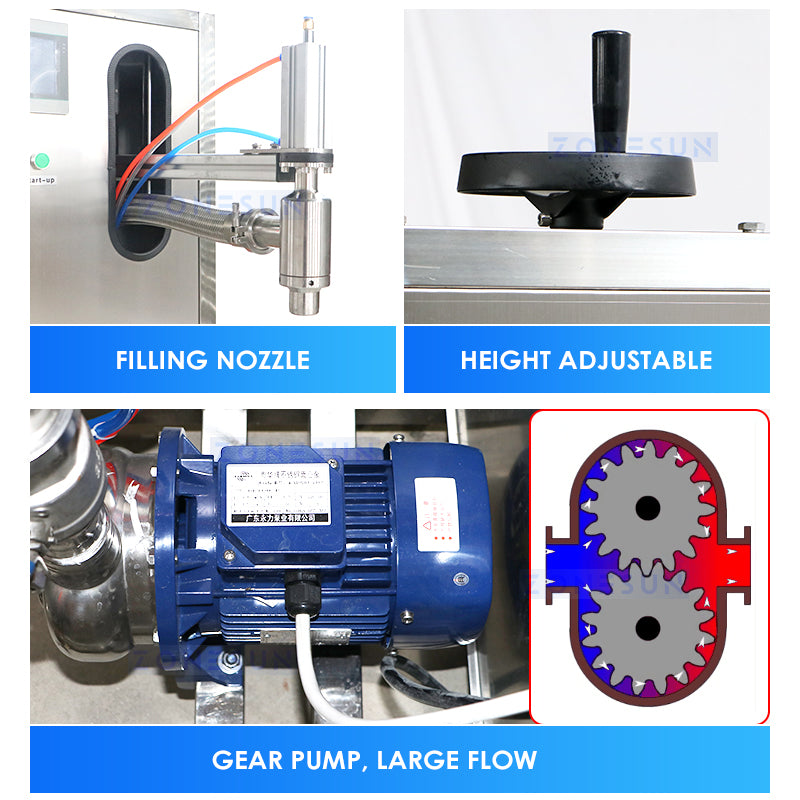

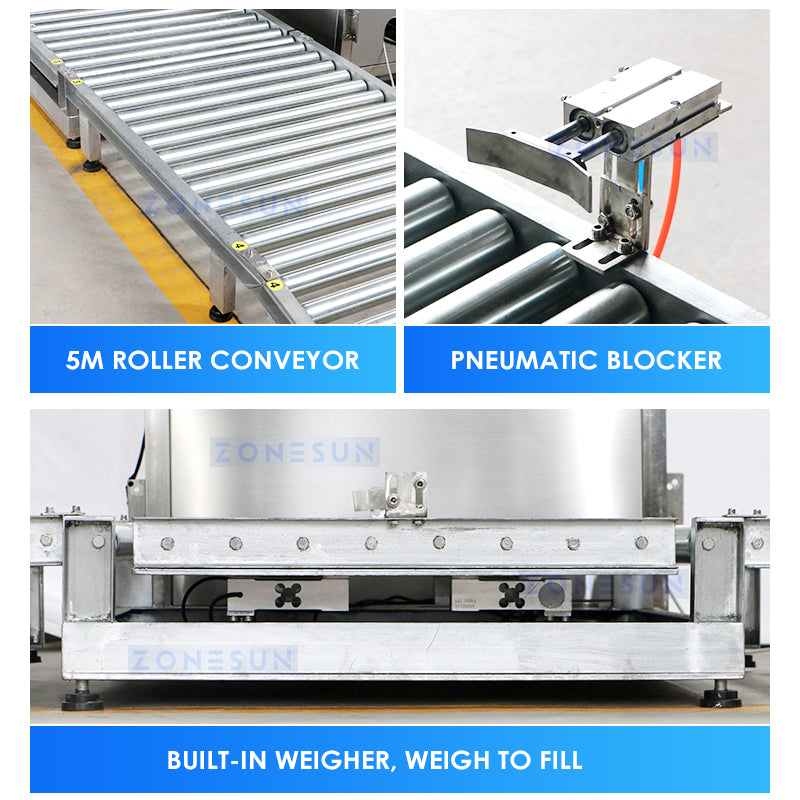

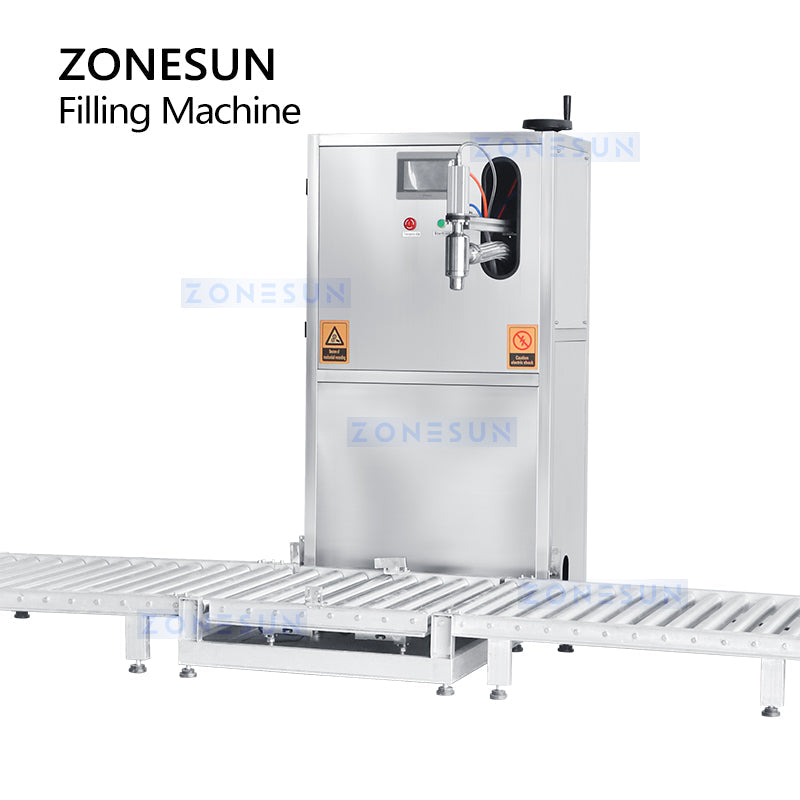

This is a filling machine especially for drums or barrels. It adopts a roller conveyor for easy transporting. With a built-in weigher in the conveyor, it weighs to fill and is controlled by a footswitch. It is designed with a gear pump of large flow rate. It also features deceleration at the end of filling to avoid splashing.
Parameter
|
Model
|
ZS-YTW250L
|
|||
|
Voltage
|
380V 50HZ
|
|||
|
Power
|
11.5kw
|
|||
|
Filling Pump
|
Gear Pump
|
|||
|
Number of filling heads
|
1
|
|||
|
Filling range
|
100-250L
|
|||
|
Conveyor length
|
5m(can be customized)
|
|||
|
Output
|
≤45 barrels/hour (200L)
|
|||
|
Required air source
|
0.6MPa
|
|||
|
Accuracy
|
≤±0.2% (depends on filling material)
|
|||
|
Machine size
|
About 450*1000*1700mm
|
|||
|
Package size
|
About 1360*1100*1840mm
|
|||
|
Package weight
|
About 420kg
|
|||
