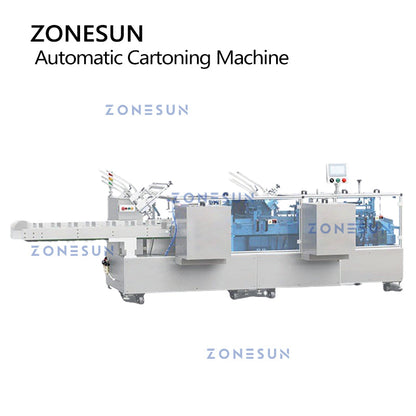

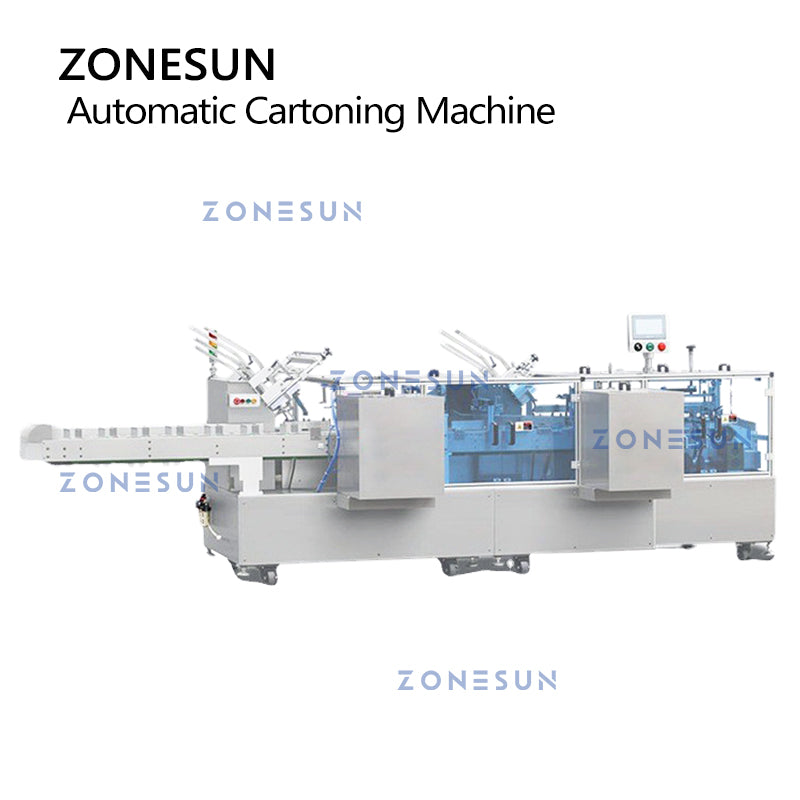

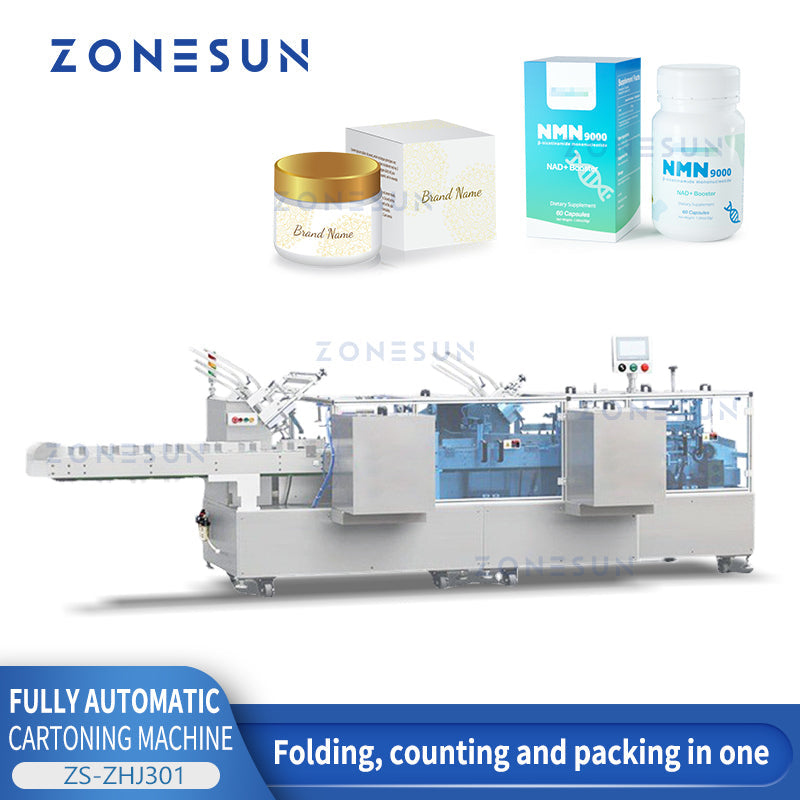

ZONESUN ZS-ZHJ301 Automatic Carton Box Sealing Packaging Machine
ZONESUN ZS-ZHJ301 Automatic Carton Box Sealing Packaging Machine
Couldn't load pickup availability
DESCRIPTION
This is a carton packaging machine for various products, such as skincare products and daily chemical products. The procedure includes opening the box, packing material into the box, tucking the flap of the box in, and sealing the box. It can be used with supporting machines to form an automatic production line.
PARAMETER
Model |
ZS-ZHJ301 |
Power Supply |
220V 50Hz 0.75kW |
Air pressure requirement |
0.5-0.8MPa |
Machine Material |
Aluminum + stainless steel |
Applicable |
L: 120-300mmW: 30-150mmH: 20-60mm (Customizable) |
Carton Material |
300-450g cardboard paper, corrugated paper |
Working Speed |
30-50 cartons/min |
Machine Size |
4008*1354*1633(mm) |
Weight |
About 1500kg |
PRODUCT DETAILS
DETECTING
Real-time detection,knowing the error promptly.

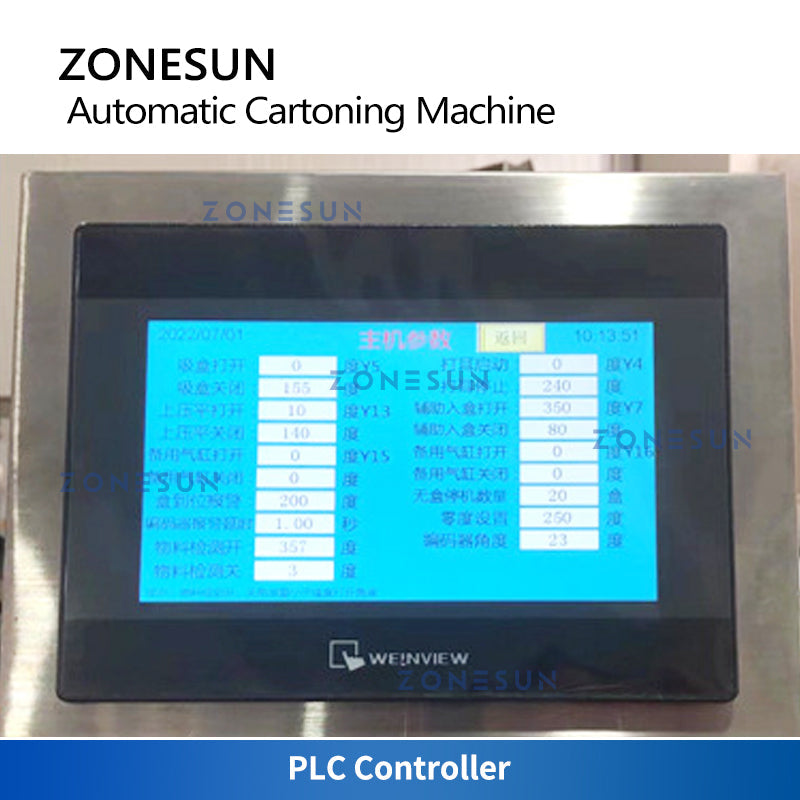

CONTROL PANEL
PLC controls, touchscreen design, color display, easy learning.

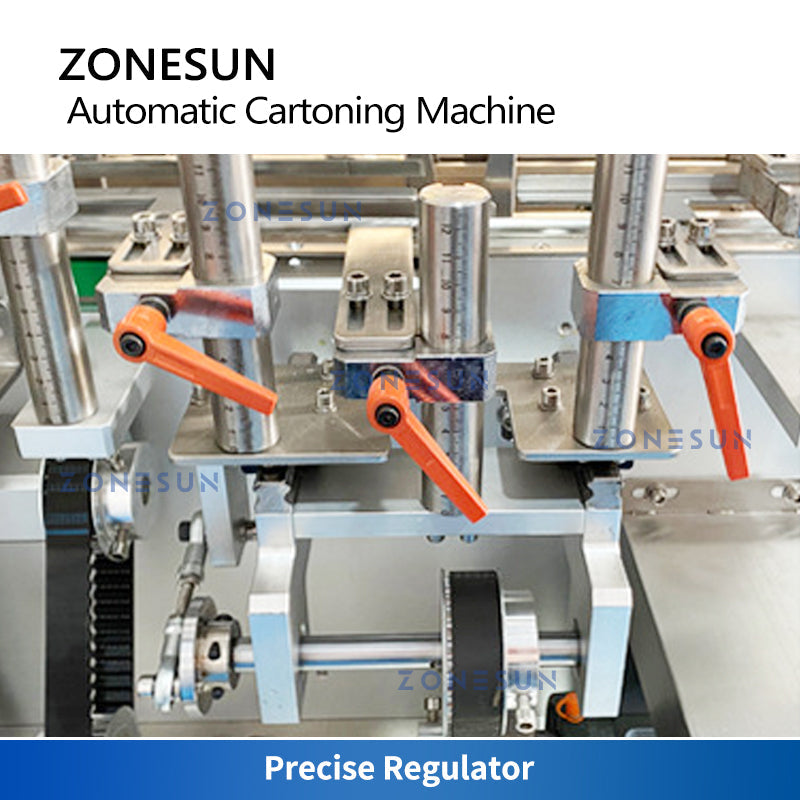

REGULATING
Quick and simple to regulate the machine to work for different products

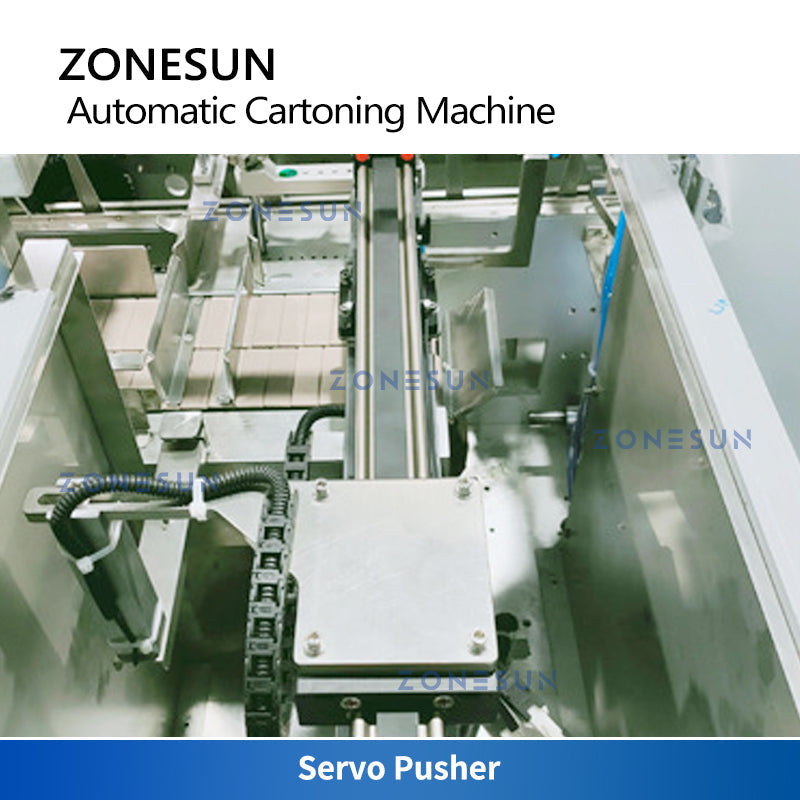

FEEDING
Servo motor control, flexibly push the products into the folded box.
