ZONESUN Big Flow Diaphragm Pump Liquid Filling Machine ZS-DTDP5-4
ZONESUN Big Flow Diaphragm Pump Liquid Filling Machine ZS-DTDP5-4
Não foi possível carregar a disponibilidade de recolha

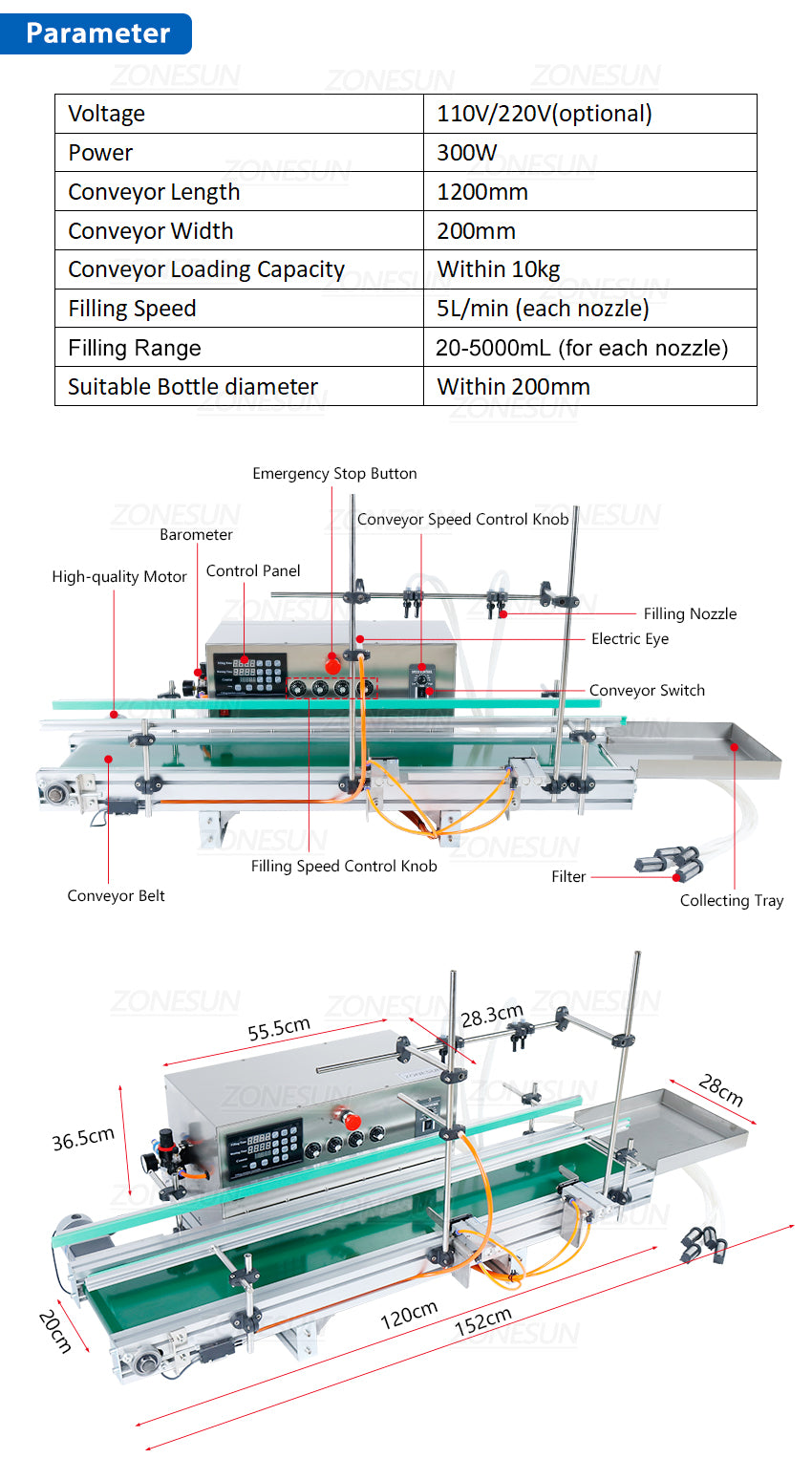

Parameter
|
Voltage |
110V/220V(optional) |
|
Power |
300W |
|
Conveyor Length |
1200mm |
|
Conveyor Width |
200mm |
|
Conveyor Loading Capacity |
Within 10kg |
|
Filling Speed |
5L/min (each nozzle) |
|
Optimum Filling Range |
20-5000mL (single bottle) |
|
Suitable Bottle Diameter |
Within 200mm |
|
Machine Weight |
38kg |
Feature
1. The machine is with a conveyor, which can bear heavy containers whose weight is within 10kg.
2. The conveyor can move positively or negatively. And the speed of the conveyor can be adjusted as needed.
3. The machine is with four nozzles, which can be controlled separately.
4. The size of feed inlet can be controlled according to containers' size, which should be within 200mm.
5. It has two working modes: Automatic mode or manual mode. Easy and convenient.
6. With digital control panel, this machine is easy to operate, and really convenient for short run production. It will not work if there is no bottles because of the intelligent electric eye. It fills bottles precisely and quantificationally.
Application
The automatic liquid filling machine is widely used in various liquid quantitative dispensing industries, such as mineral water, beverage, edible oil, daily chemicals, etc.
