ZONESUN ZS-XG20A Automatic Screwing Capping Machine
ZONESUN ZS-XG20A Automatic Screwing Capping Machine
Обычная цена
$3,749.00 USD
Обычная цена
Цена со скидкой
$3,749.00 USD
Цена за единицу
за
Стоимость доставки рассчитывается при оформлении заказа.
Не удалось загрузить сведения о доступности самовывоза
DESCRIPTION

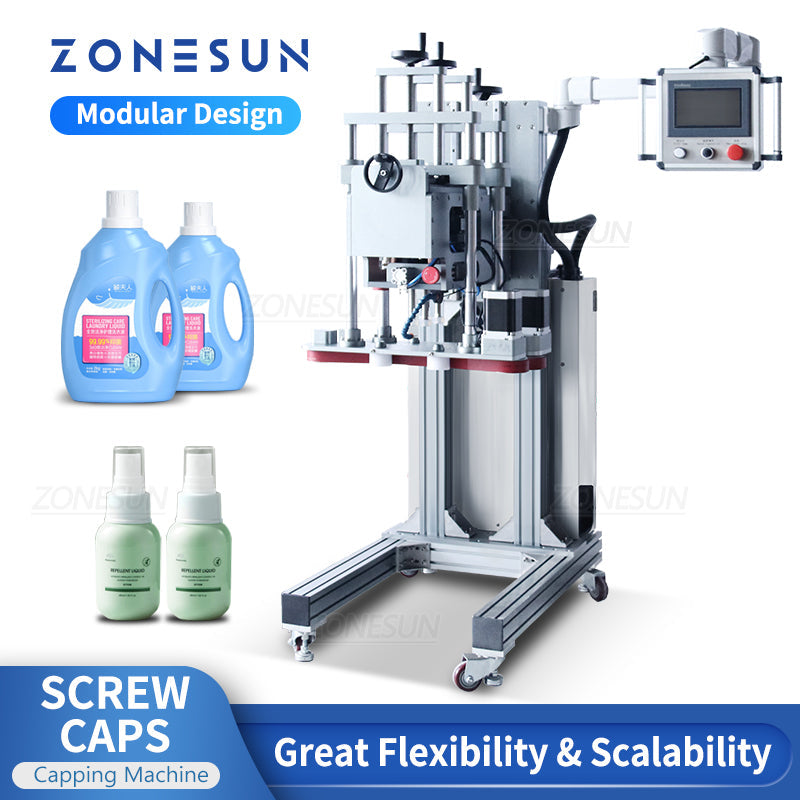

This is a capping machine. It features great flexibility and scalability. It can be put into any capping production line. Also, it adopts 4 rubber wheels for capping, which is suitable for various screw caps. It is widely used in the food, daily chemical, and cosmetics industries.
PARAMETER
|
Model |
ZS-XG20A |
|
Voltage |
110/220V 50-60Hz 1KW |
|
Working speed |
About 45 bottles/min |
|
Cap diameter |
20-68mm(standard) 15-70mm/20-115mm(customized) |
|
Bottle size |
80-300mm (Height), 25-150mm (Diameter) |
|

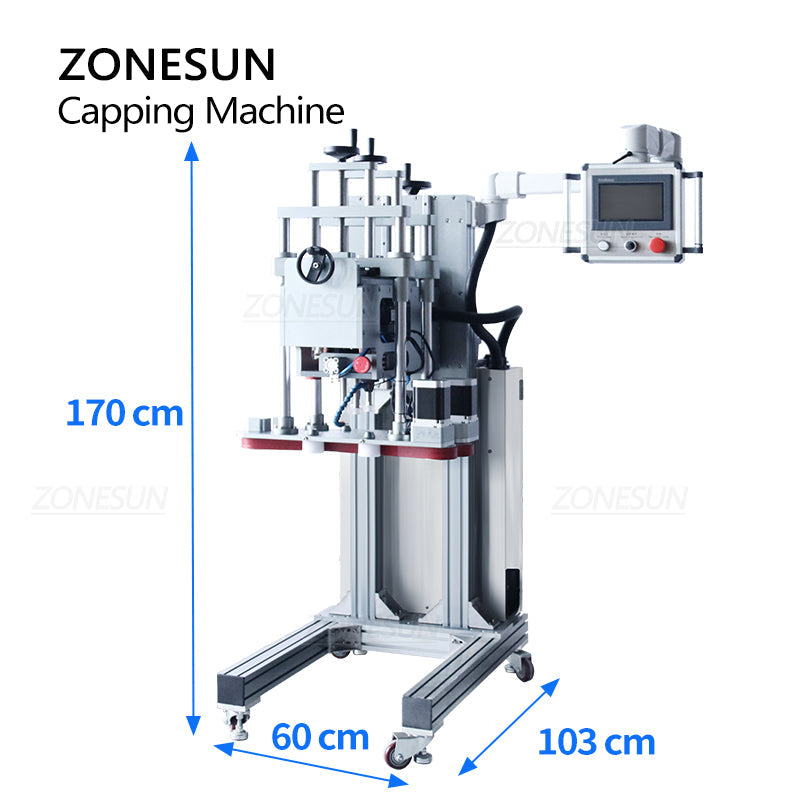

Machine size |
About 600*1030*1700mm |
|
Machine weight |
About 200kg |
|
Package size |
About 1270*720*1870mm |
|
Package weight |
About 241kg |
PRODUCT DETAILS

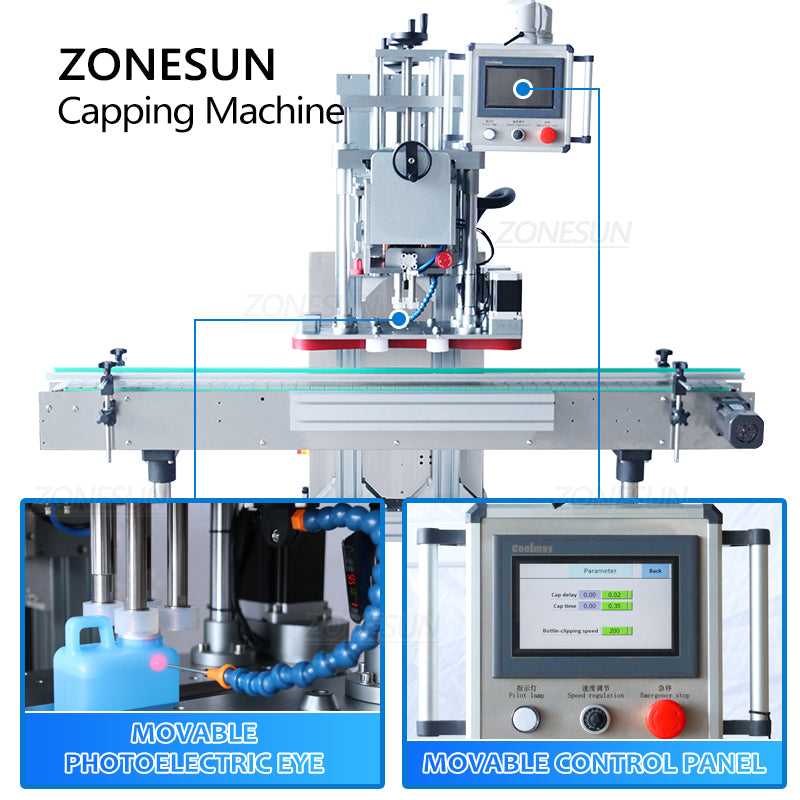

CONTROL PANEL
Movable, convenient to adjust the angle.
PLC controls, easy to set the parameters.

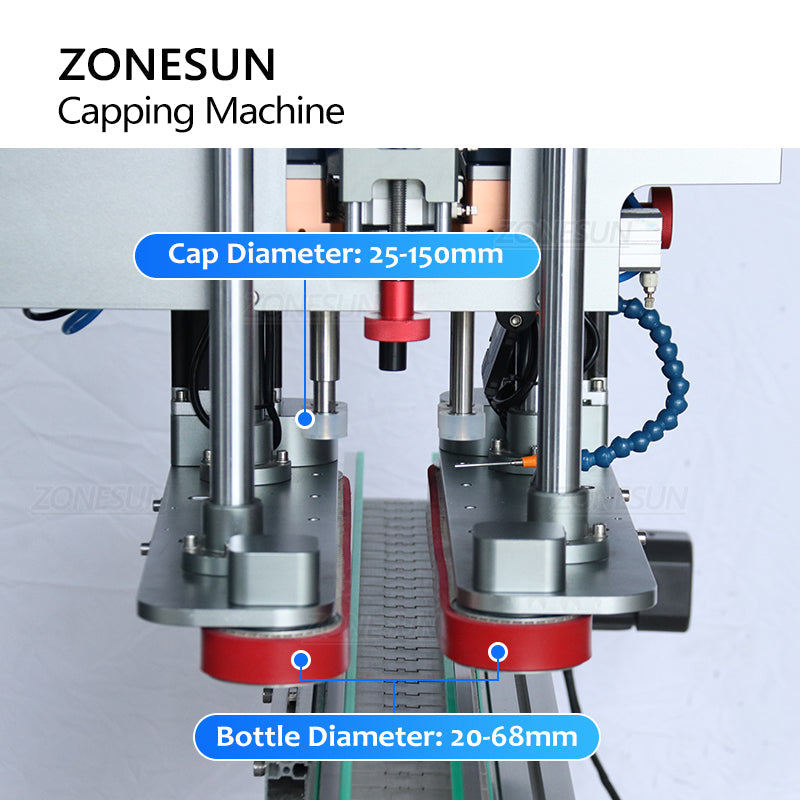

CAPPING
Applicable to various screw caps, such as spray caps and dropper caps.
PHOTOELECTRIC EYE
Movable, sensitive, and easy to adjust the position.
GUIDING RAILS
These rails help hold and stop the containers during capping. There is no need for extra baffles.
APPLICATION

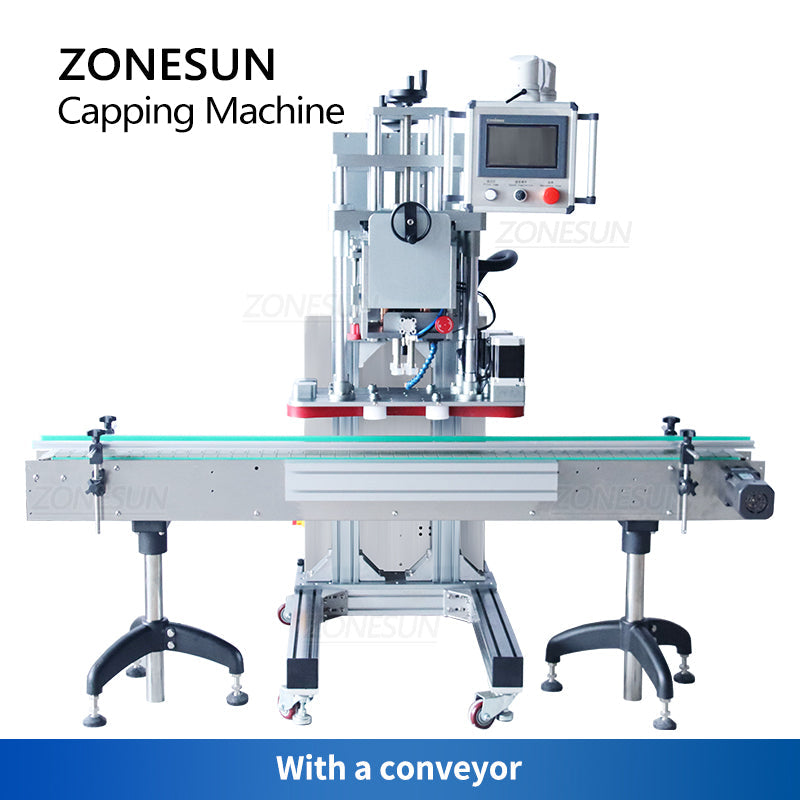

It can be put in use in any production line with a conveyor.
